Propeller Shaft: Removal

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

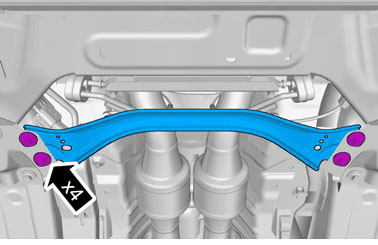

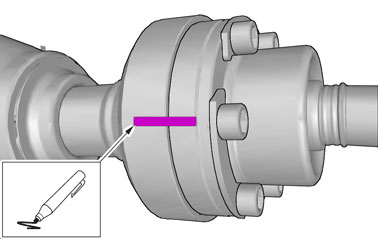

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

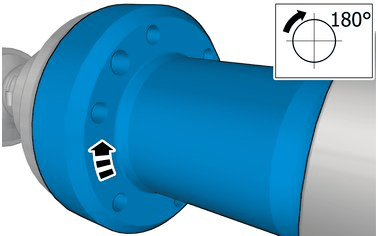

Courtesy of VOLVO CARS CORPORATION

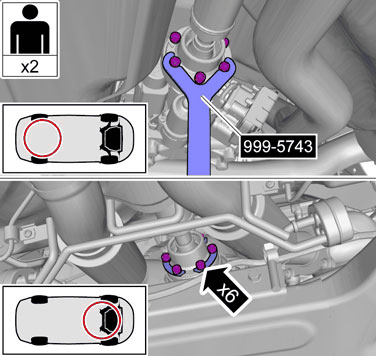

Torque:Prop shaft, CV joint,

• Stage 1: 10Nm
• Stage 2: 25Nm

Special Tool: 999 5743

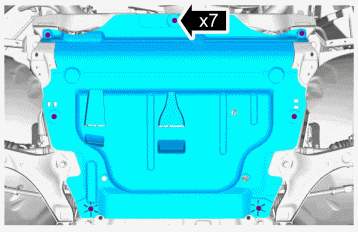

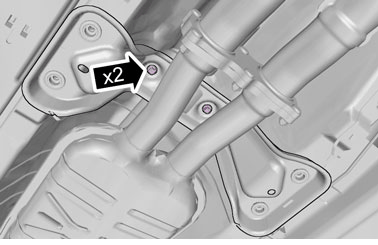

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

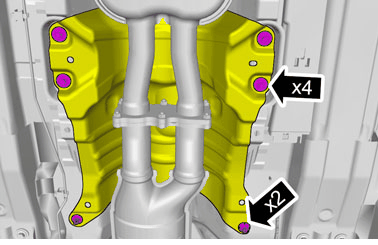

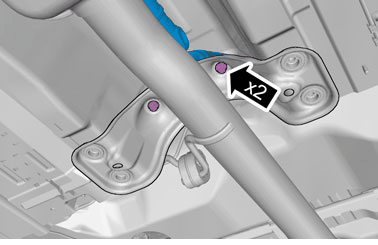

Remove the screws.

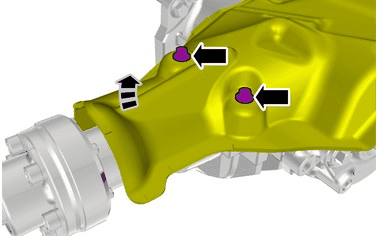

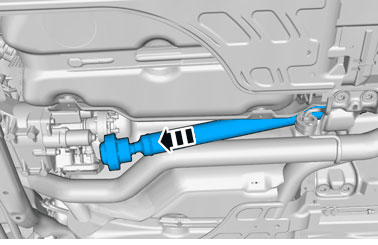

Lift the marked component up

Torque:  M6, 10Nm

ALTERNATIVE 1

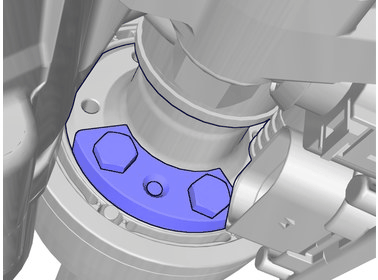

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

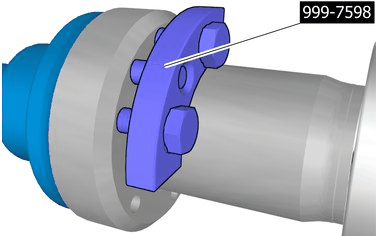

Special Tool: 999 7598

ALTERNATIVE 2

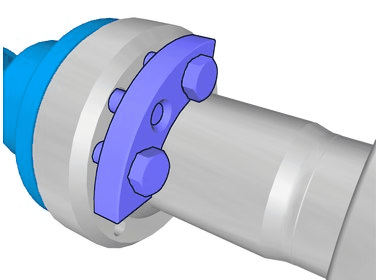

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

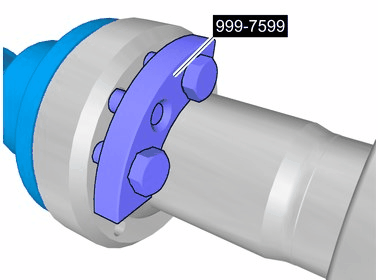

Special Tool: 999 7599

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Special Tool: 999 7598   and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

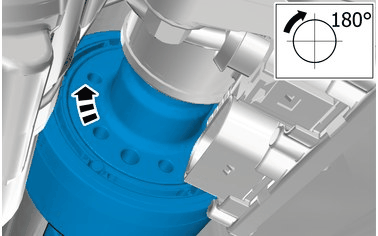

Courtesy of VOLVO CARS CORPORATION

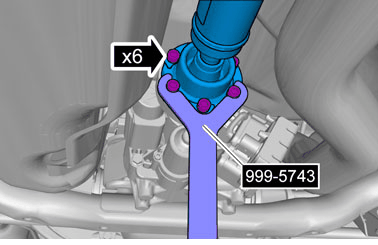

Torque:Prop shaft, CV joint,

• Stage 1: 10Nm
• Stage 2: 25Nm

Special Tool: 999 5743

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

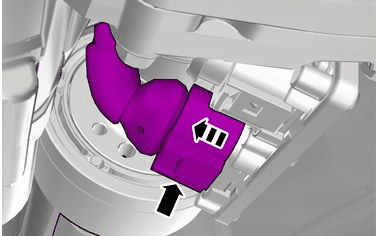

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Special Tool: 999 7598   and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Special Tool: 999 7598  and Special Tool: 999 7599

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Prop shaft, center bearing, 30Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Prop shaft, center bearing, 30Nm

Courtesy of VOLVO CARS CORPORATION
