Checking The Function

Fig 1: Identifying Ignition On Position

GLL101053

Courtesy of VOLVO CARS CORPORATION

Ignition on.
Activate the engine cooling fan (FC). Check that it starts and runs normally.

Try by activating different speeds on the electric cooling fan.

Remedy as necessary.

Other information
- see ELECTRIC COOLING FAN
Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA
Courtesy of VOLVO CARS CORPORATION

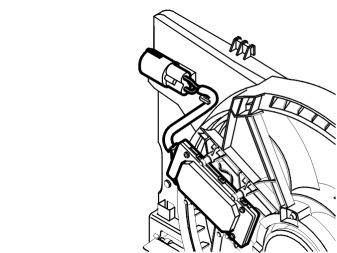

Fig 3: Identifying Engine Cooling Fan (FC)
Courtesy of VOLVO CARS CORPORATION

Continue
Refer to CHECKING THE COMPONENT AND WIRING
