Crankshaft Position Sensor (CKP)

NOTE:

Removal steps in this procedure may contain installation details.

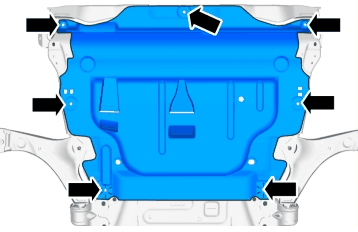

Fig 1: Locating Engine Undercover And Clips
GLL156132Courtesy of VOLVO CARS CORPORATION

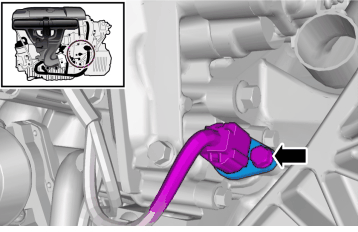

Fig 2: Identifying Crankshaft Position Sensor (CKP)
GLL156200Courtesy of VOLVO CARS CORPORATION

M6. See TIGHTENING TORQUE

To install, reverse the removal procedure
