Pressure Sensor, Fuel Rail (FRP): Notes

NOTE:

Removal steps in this procedure may contain installation details.

Always read the safety precautions, see: SAFETY INFORMATION GASOLINE

Drain the fuel system. See FUEL SYSTEM PRESSURE RELEASE

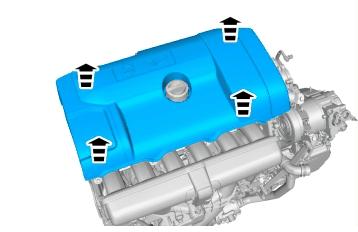

Fig 1: Identifying Engine Cover Removal

GLL156080

Courtesy of VOLVO CARS CORPORATION

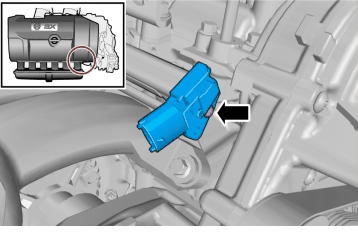

Fig 2: Locating Fuel Rail Pressure Sensor (FRP)

GLL156145

Courtesy of VOLVO CARS CORPORATION

M5. See TIGHTENING TORQUE
