Knock Sensor (KS)

Fig 1: Identifying Engine Cover Removal

Courtesy of VOLVO CARS CORPORATION

Remove the intake manifold. See INDUCTION PIPE .

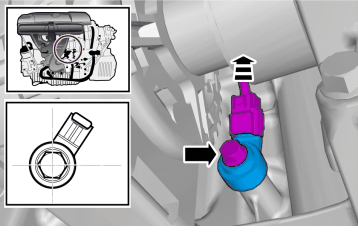

Fig 2: Locating Knock Sensor

Courtesy of VOLVO CARS CORPORATION

Remove the oil cooler. See OIL COOLER, ENGINE

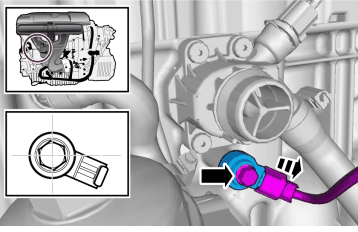

Fig 3: Locating Knock Sensor

Courtesy of VOLVO CARS CORPORATION

Knock sensor. See SUMMARY OF TIGHTENING TORQUES FOR SPECIFIC COMPONENTS

To install, reverse the removal procedure
