Diagnostic Trouble Code (DTC) Information ICM-1F25

Condition

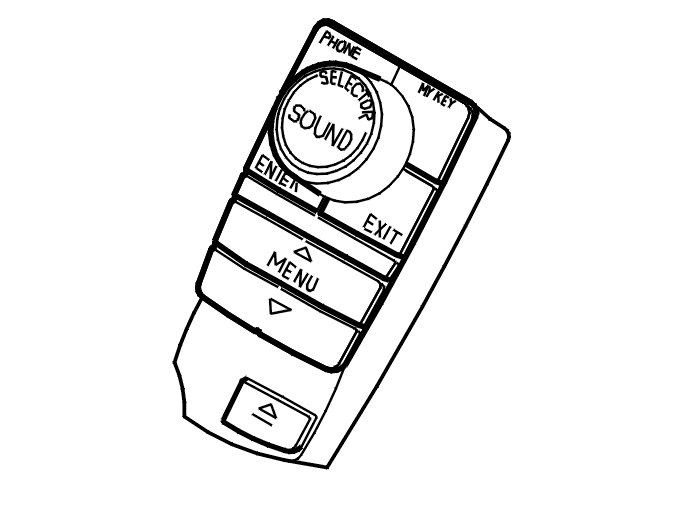

Fig 1: Identifying Right-Hand Keypad

Courtesy of VOLVO CARS CORPORATION

The infotainment control module (ICM) checks the circuit for the SOUND button.

Diagnostic trouble code (DTC) ICM-1F25 is stored if the control module registers that the signal in the keypad circuit is too high or too low.

Substitute Value

• None.

Possible Source

• Short-circuit to ground or an open-circuit in the right-hand keypad unit
• Short-circuit to ground or an open-circuit in the cable for the keypad unit.

Fault symptom[s]

• Buttons on the keypad unit are not working.
