Installing The Inlet Pipe

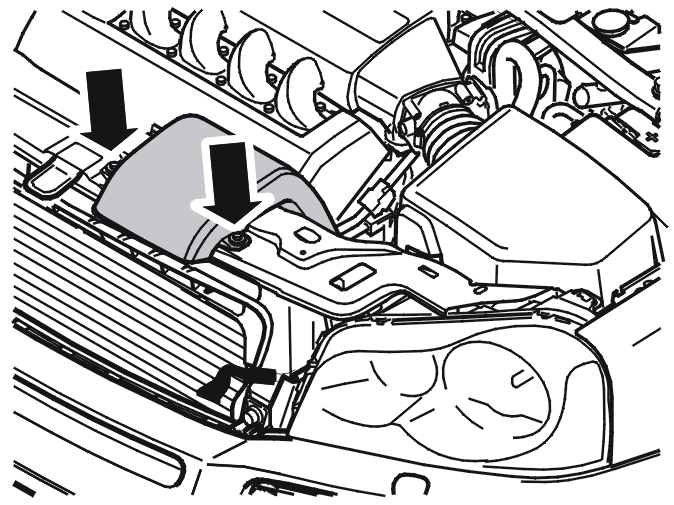

Fig 1: Identifying Inlet Pipe

GLL149406

Courtesy of VOLVO CARS CORPORATION

Install the inlet pipe to the air cleaner (ACL) housing.
