Location Of Components

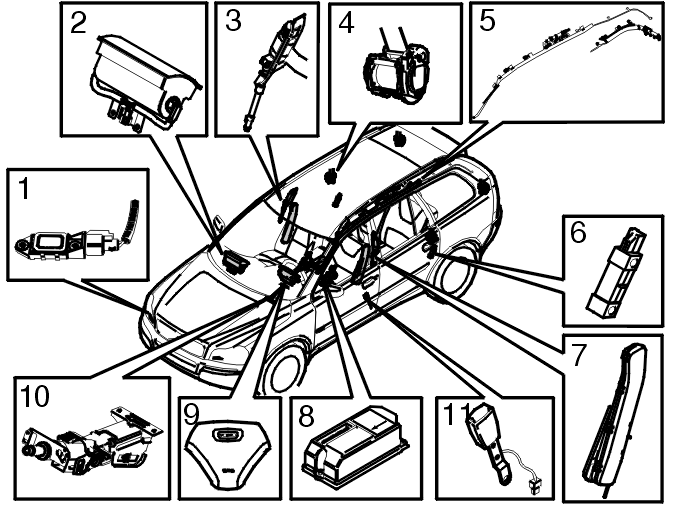

Fig 1: Identifying Location Of Components

Courtesy of VOLVO CARS CORPORATION

Overview

1. Frontal collision sensor left and right front
2. Passenger airbag
3. Seat belt tensioner left and right front
4. Seat belt tensioner left and right rear. Seat belt tensioner 3rd row (7 seat models only)
5. Inflatable curtain front and rear (7 seat models only)
6. Side impact sensor left and right B and C-post
7. Side impact protection (SIPS) bag left and right front
8. SRS (supplemental restraint system) control module
9. Driver's airbag
10. Steering column
11. Seat belt buckle left and right front.
