GDL-Master And GDL-Slave: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, 2009 Volvo C70, and 2008 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

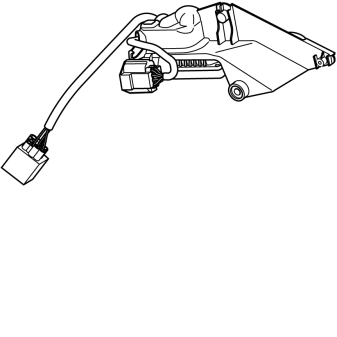

There are two Gas Discharge Lamp Modules (GDLs), one for each headlamp. The one located on the driver's side of the vehicle acts as "master" and communicates with the Central electronic module (CEM) via LIN-communication. The other Gas Discharge Lamp Module (GDL)acts as "slave" and communicates with the "master" control module via LIN-communication.
Other information
An electronic ballast is connected to each headlight. The ballast acts as a voltage regulator and generates alternating voltage (AC).
