Front Fog Lamps (Certain Lamps)

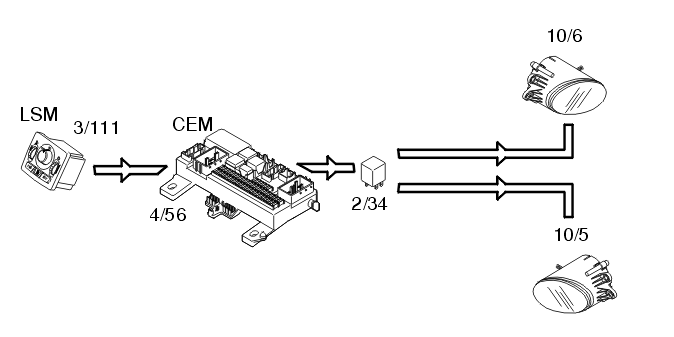

Fig 1: Identifying Front Fog Lamps (Certain Lamps)

Courtesy of VOLVO CARS CORPORATION

The front fog lamps (10/5-6) are activated by pressing the button for the front fog lamps in the light switch module (LSM) (3/111). The light switch module (LSM) is directly connected to the central electronic module (CEM) (4/56).

The power supply for the lamps is via a directly connected relay (2/34) on the central electronic module (CEM).
