Installing Components In Engine Compartment

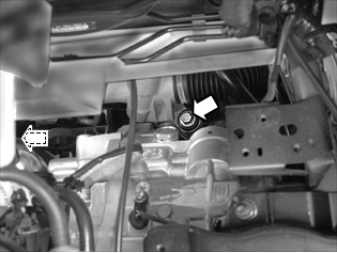

Fig 1: Identifying Steering Gear Screws

GLL140407

Courtesy of VOLVO CARS CORPORATION

Tighten the 2 x M12 screws for the steering gear.
