Removing/Installing The Bulb

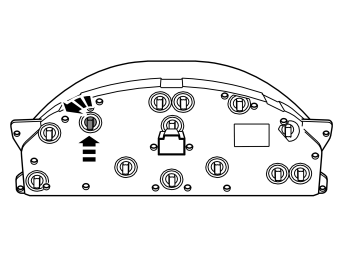

Fig 1: Identifying Driver Information Module Bulb (Removal/Installation)

GLL152048

Courtesy of VOLVO CARS CORPORATION

Replace the bulb by removing the bayonet connector.
