Electrical Components (2003-2011): Washers

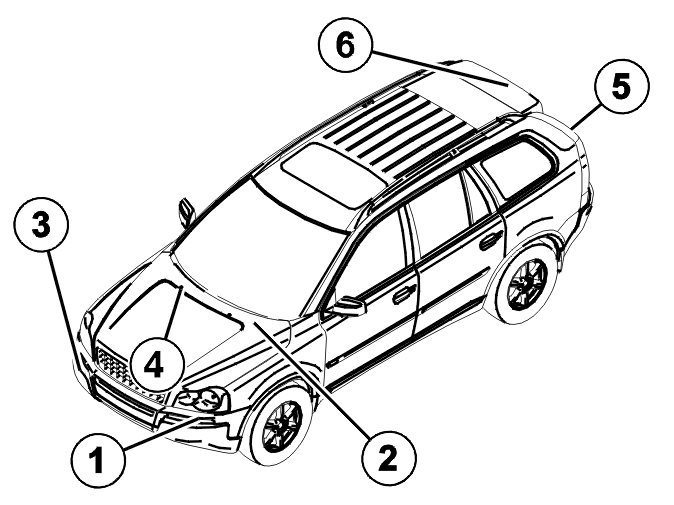

Fig 1: Locating Cleaner Components
GLL101894Courtesy of VOLVO CARS CORPORATION
  1. High-pressure headlamp washer
  2. Windshield wiper mechanism and wiper motor
  3. Washer fluid reservoir
  4. Windshield washer nozzle
  5. Rear windshield wiper motor
  6. Rear windshield washer nozzle.
