Engine, Installing: Notes

Special tools
	T9995666 WRENCH(DISCONNECTING FUEL LINE) Tool number: T9995666 Tool description: WRENCH (DISCONNECTING FUEL LINE) Tool boards:
	T9997076 LEVER Tool number: T9997076 Tool description: LEVER Tool boards:

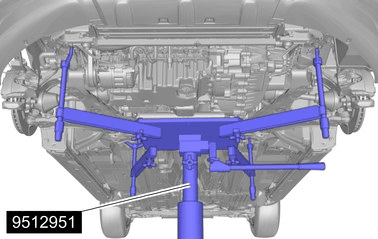

Fig 1: Identifying Lift Table

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that no components catch when lifting the engine.

Use: Lift table.

Make sure that the mating surfaces on the ball joints and control arms are clean.

Raise the engine/transmission unit. Stop the lift approx. 15 cm before the subframe reaches the frame members.

Install (on both sides) the drive shaft to the hub.

Continue raising the engine until it is only approx. 50 mm before it makes contact.

Guide the lower steering shaft into the hole in the firewall.

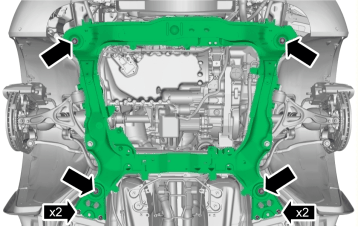

Fig 2: Identifying Subframe Bolts

Courtesy of VOLVO CARS CORPORATION

the subframe. See TIGHTENING TORQUE

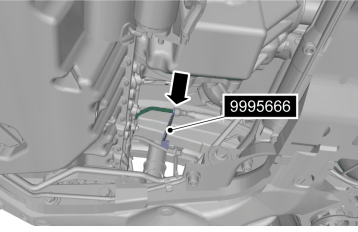

Fig 3: Identifying Using Tool 9995666

Courtesy of VOLVO CARS CORPORATION

see 9995666

Fig 4: Locating Fuel Line Connector

Courtesy of VOLVO CARS CORPORATION

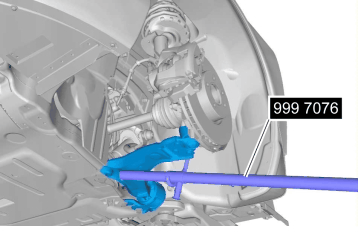

Fig 5: Identifying Lever Tool 9997076

Courtesy of VOLVO CARS CORPORATION

see 9997076

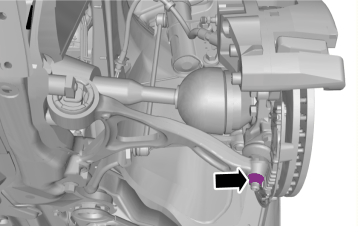

Fig 6: Identifying Nut, Ball Joint.

Courtesy of VOLVO CARS CORPORATION

Nut, ball joint. See TIGHTENING TORQUE

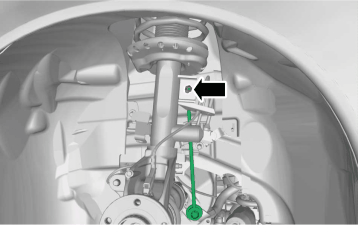

Fig 7: View of Stabilizer Link

Courtesy of VOLVO CARS CORPORATION

Anti-roll bar link. See TIGHTENING TORQUE

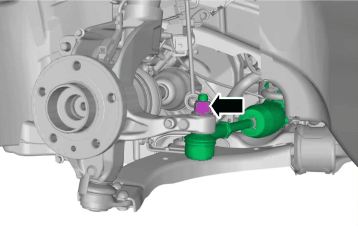

Fig 8: Identifying Tie Rod End

Courtesy of VOLVO CARS CORPORATION

Ball joint. See TIGHTENING TORQUE

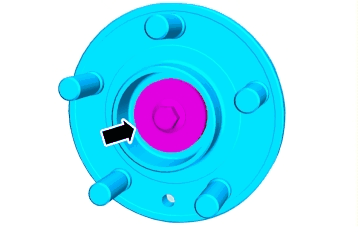

Fig 9: Identifying Drive Shaft Bolt

Courtesy of VOLVO CARS CORPORATION

Drive shaft screw. See TIGHTENING TORQUE

Fig 10: Locating Bracket Bolts

Courtesy of VOLVO CARS CORPORATION

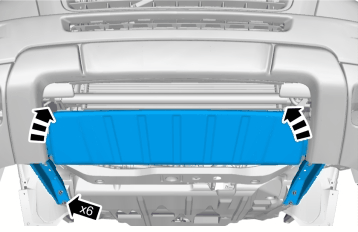

Fig 11: Identifying Splash Panel.

Courtesy of VOLVO CARS CORPORATION

M10. See TIGHTENING TORQUE

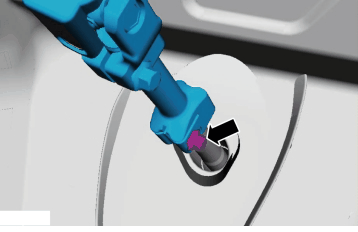

Fig 12: Identifying Steering Shaft Pinch Bolt

Courtesy of VOLVO CARS CORPORATION

Steering shaft joint. See TIGHTENING TORQUE

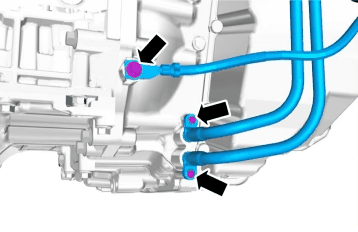

Fig 13: Viewing Bolts For Cable And Tubes

Courtesy of VOLVO CARS CORPORATION

M8. See TIGHTENING TORQUE

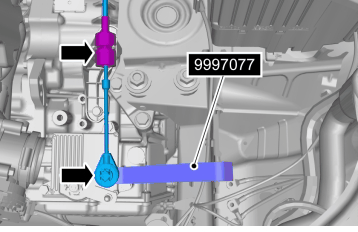

Fig 14: Identifying Special Tool 9997077

Courtesy of VOLVO CARS CORPORATION

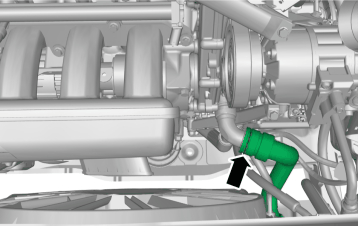

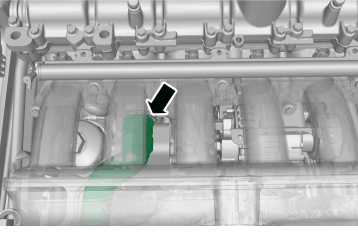

Fig 15: Identifying Hose Connector Below Intake

Courtesy of VOLVO CARS CORPORATION

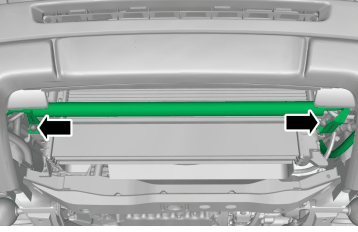

Fig 16: Identifying Radiator Hose Connector

Courtesy of VOLVO CARS CORPORATION

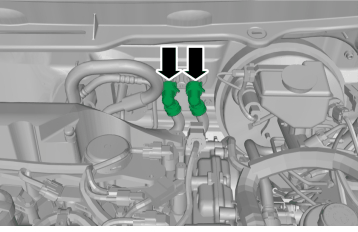

Fig 17: Locating Heater Hose Connectors

Courtesy of VOLVO CARS CORPORATION

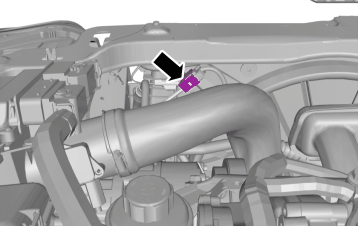

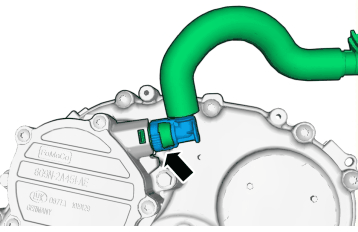

Fig 18: Identifying Quick Connect Vacuum Hose

Courtesy of VOLVO CARS CORPORATION

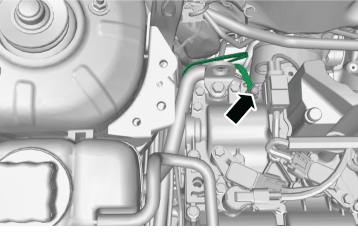

Fig 19: Locating Ground Point

Courtesy of VOLVO CARS CORPORATION

M6. See TIGHTENING TORQUE

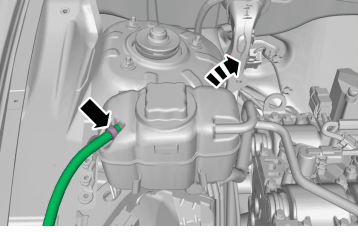

Fig 20: Identifying Coolant Hose to Reservoir

Courtesy of VOLVO CARS CORPORATION

Fig 21: Locating Electrical Connector

Courtesy of VOLVO CARS CORPORATION

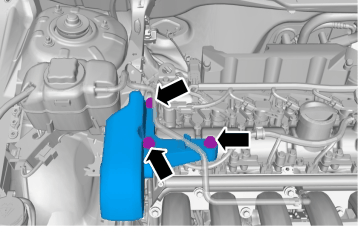

Fig 22: Identifying Upper Engine Mounting Bolts

Courtesy of VOLVO CARS CORPORATION

Install the following items:

M10. See TIGHTENING TORQUE
M12. See TIGHTENING TORQUE

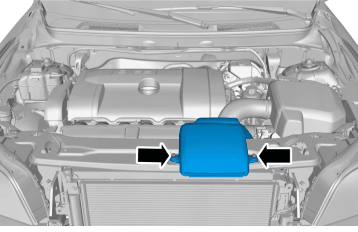

Fig 23: Locating Air Intake

Courtesy of VOLVO CARS CORPORATION

Install the following items:

the auxiliaries belt. See AUXILIARY BELT
the catalytic converter. See CATALYTIC CONVERTER
the propeller shaft. See PROPELLER SHAFT
front tires. See INSTALLING WHEELS

Charge the cooling system. See COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Connect the battery. See BATTERY, REPLACING

Move over the oil level sensor. See LEVEL SENSOR ENGINE OIL
