Installing The Spring Strut: Notes

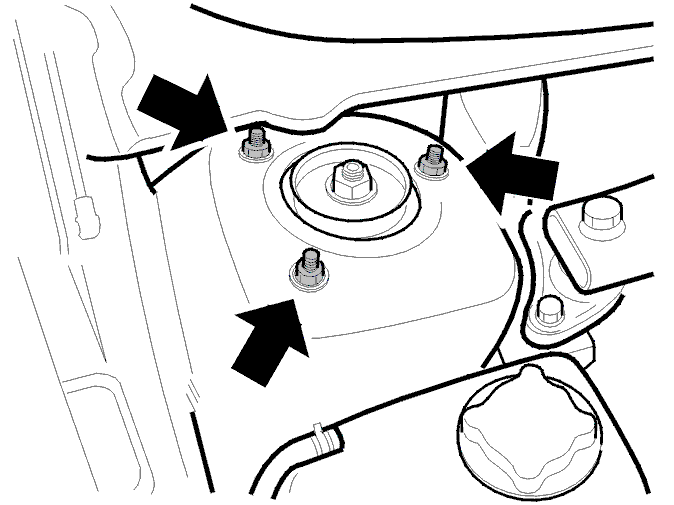

Fig 1: Locating Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS CORPORATION

Install the spring strut in the bodywork using new nuts. Tighten. See TIGHTENING TORQUE .

Fig 2: Installing Spring Strut On Wheel Spindle

Courtesy of VOLVO CARS CORPORATION

Install the spring strut on the stub axle. Use new screws and new nuts.

Adjust the spring strut and stub axle to the measured value. See.

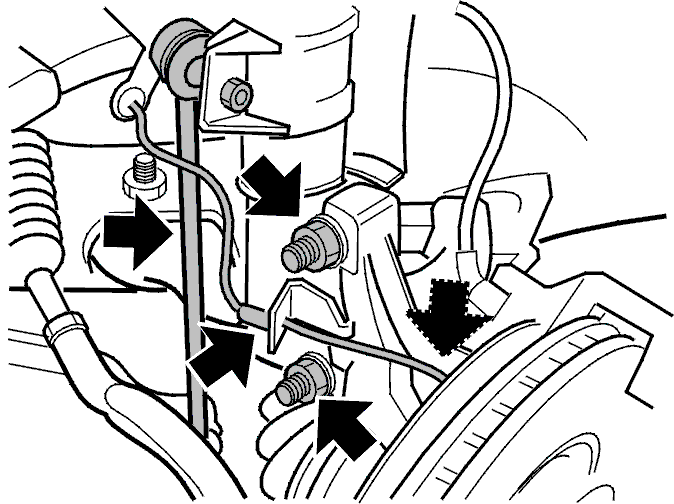

Fig 3: Identifying Spring Strut To Wheel Spindle Bolts And Nuts, Anti-Roll Bar And ABS Wire

Courtesy of VOLVO CARS CORPORATION

Tighten, see: TIGHTENING TORQUE . Use protractor see 9512050 .

Install:

• the anti-roll bar link to the spring strut. Use a new nut. Tighten. See: TIGHTENING TORQUE . Counterhold using a Torx wrench to prevent damage to the boot.
• The ABS sensor. Tighten to 10 Nm  .

Install:

• the ABS sensor cable in the bracket.
• the wheel. See INSTALLING WHEELS .

Check and adjust the headlights' alignment according to: HEADLAMPS, ALIGNING
