Explanation Of Dimensions

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess as shown.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension shown.

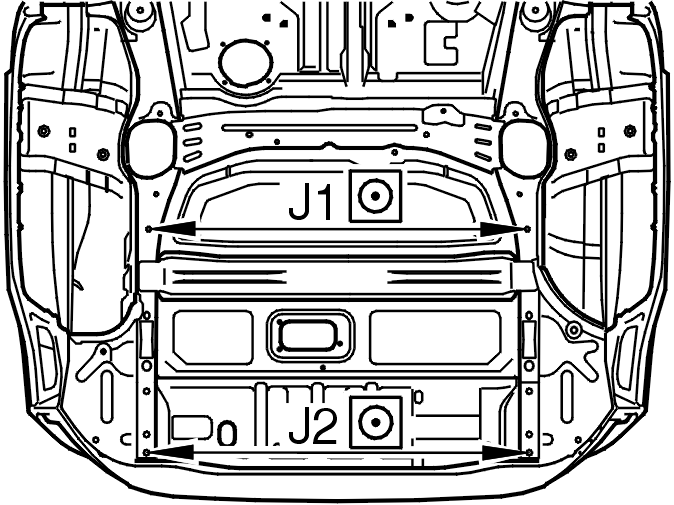

Fig 2: Rear Side Member Position Measurement Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

J1 = 1068 mm

J2 = 1081 mm

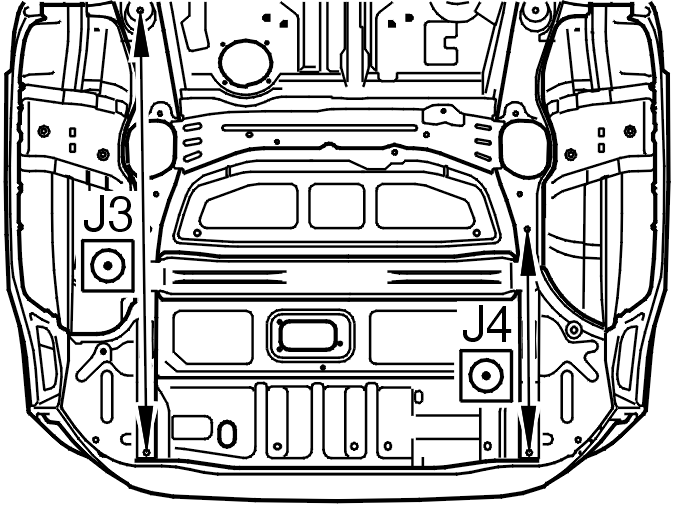

Fig 3: Rear Side Member Position Measurement Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

J3 = 1259 mm

J4 = 631 mm
