Installing The EVAP Valve

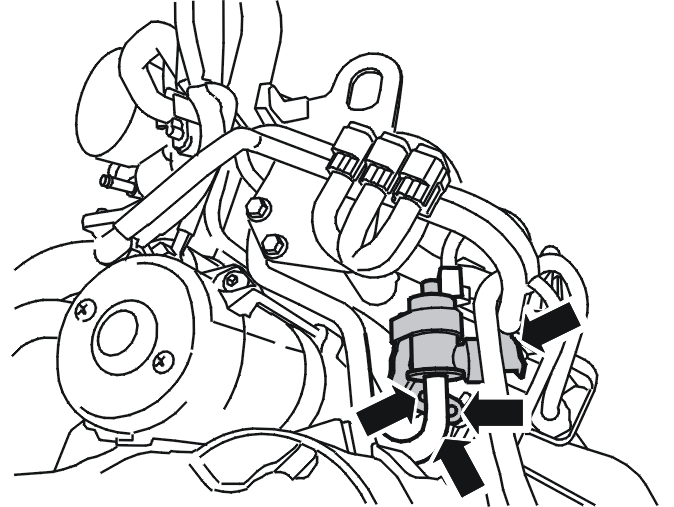

Fig 1: Locating EVAP Valve

Courtesy of VOLVO CARS CORPORATION

Install:

• the hose from the intake manifold to the EVAP valve; secure with the clamp
• the EVAP line to the tank on the EVAP valve; secure with the quick-action lock
• the EVAP valve on the bracket. Plug in the connector to the EVAP valve.
