Sim Card Holder

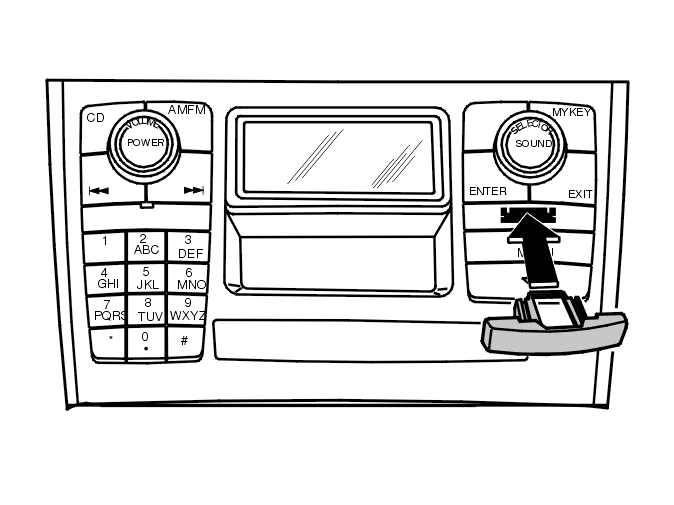

Fig 1: Locating Sim Card Holder
GLL102009Courtesy of VOLVO CARS CORPORATION

The holder for the customer's private SIM card is in the keypad for the infotainment control module (ICM). The SIM card holder is connected to the phone module (PHM) via serially connected wiring.

There are diagnostics for the SIM card holder.
