Installing Engine Block Components

NOTE:

Always use new seal washers and gaskets

Install

IF IN DOUBT ABOUT THE ORDER OF ASSEMBLY SEE:

B5xx4x ........ See ENGINE BODY, EXPOSING

B6xx4x ........ See ENGINE BODY, EXPOSING

Install the flywheel and carrier plate. See CRANKSHAFT SEAL REAR, REPLACING .

FOR THE CORRECT TIGHTENING TORQUES SEE:

B5xx4x ........ See TIGHTENING TORQUE

B6xx4x ........ See TIGHTENING TORQUE

The ignition coil alignment and the wiring routing follows the illustrations below.

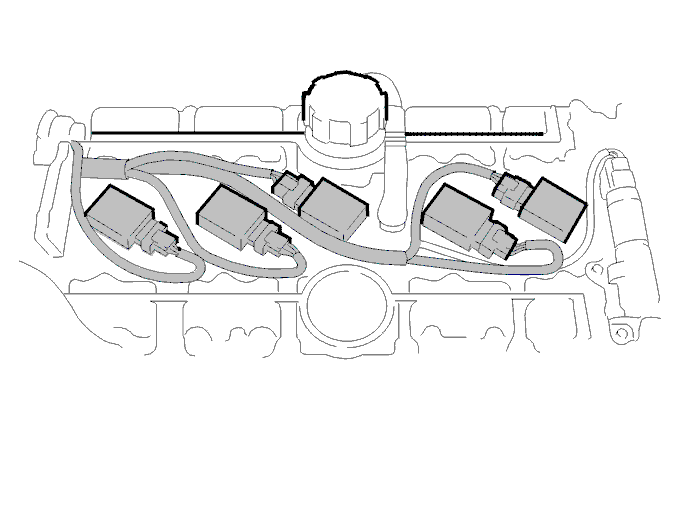

Fig 1: Identifying Ignition Coils B5xx4x

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Ignition Coils - B6xx4x

Courtesy of VOLVO CARS CORPORATION
