Navigation System, RTI [2012-2015]: Introduction

INFORMATION

Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available before starting installation.
Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

COLOR SYMBOLS

Courtesy of VOLVO CARS CORPORATION

NOTE:

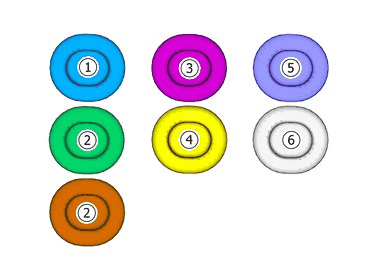

This color chart displays (in color print and electronic version) the importance of the different colors used in the images of the method steps.

Used for focused component, the component with which you will do something.
Used as extra colors when you need to show or differentiate additional parts.
Used for attachments that are to be removed/installed. May be screws, clips, connectors, etc.
Used when the component is not fully removed from the vehicle but only hung to the side.
Used for standard tools and special tools.
Used as background color for vehicle components.

REMOVAL

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

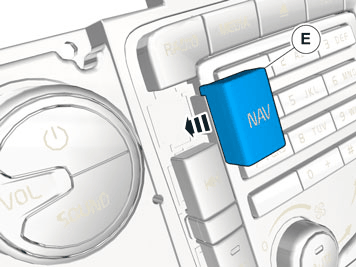

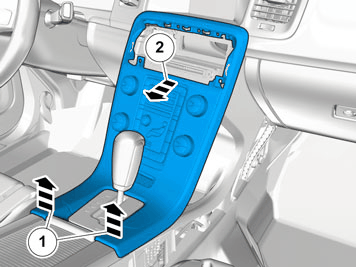

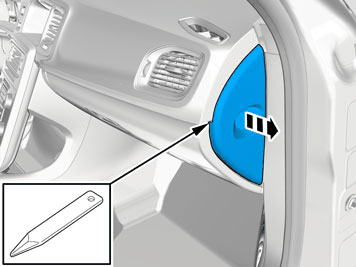

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

CARS WITH AUTOMATIC TRANSMISSIONS:

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

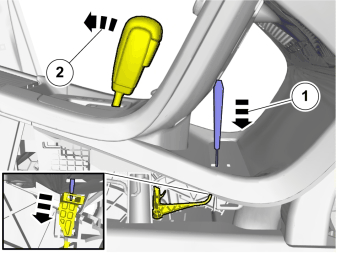

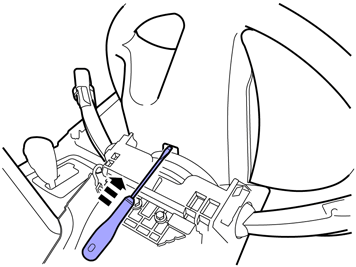

Release the shift-lock function.

Courtesy of VOLVO CARS CORPORATION

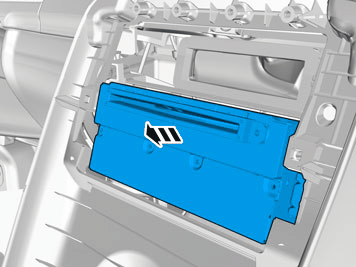

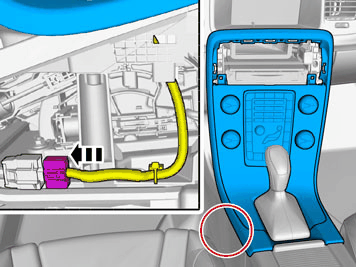

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

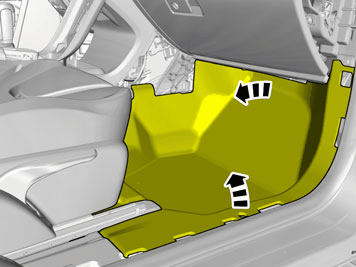

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

Unhook the cable harness clips.
Disconnect the connector.

VEHICLES WITH THE 4C SYSTEM:

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

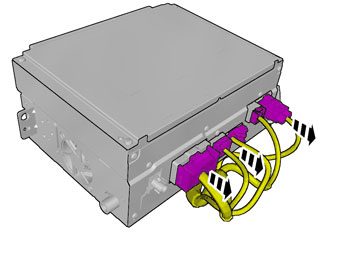

Disconnect the connector.

ALL VEHICLES:

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

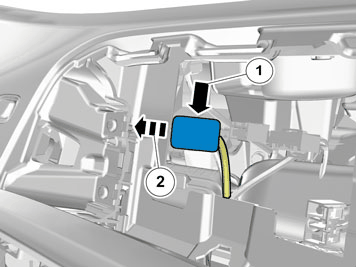

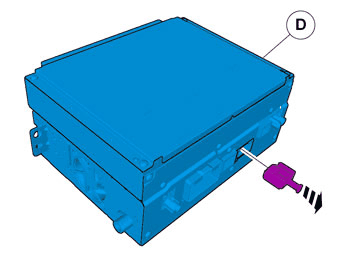

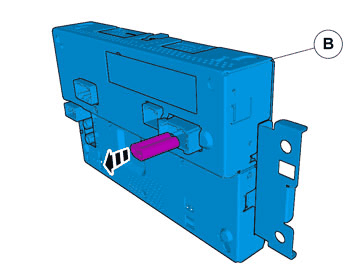

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

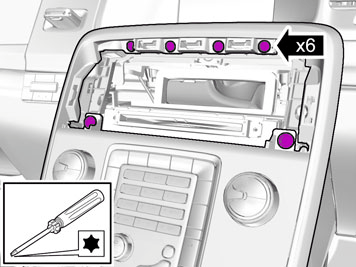

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

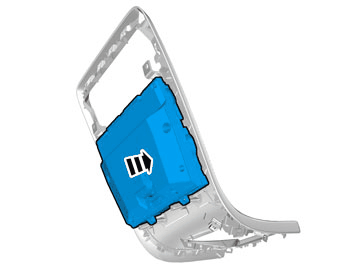

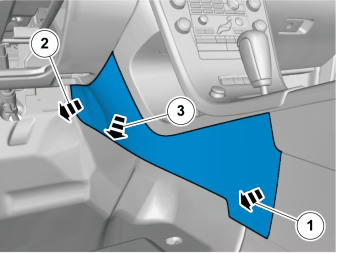

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

ACCESSORY INSTALLATION

Courtesy of VOLVO CARS CORPORATION

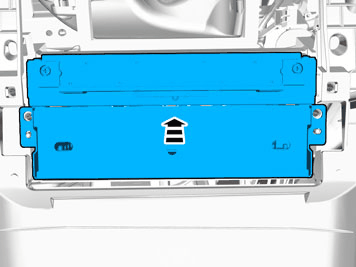

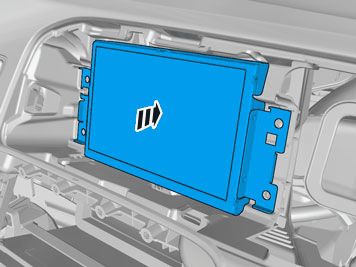

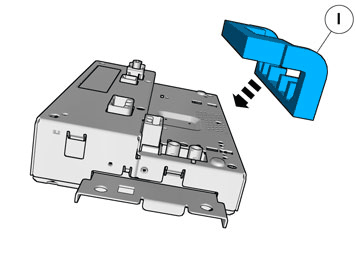

Install component that comes with the accessory kit.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Install the panel.

Courtesy of VOLVO CARS CORPORATION

Reinstall the screws.

Courtesy of VOLVO CARS CORPORATION

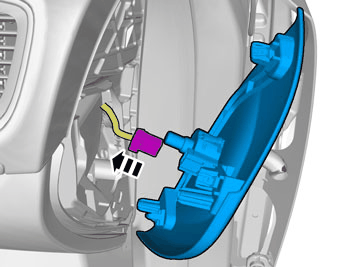

Connect the connector.

VEHICLES WITH 5 INCH ICM-DISPLAY:

Courtesy of VOLVO CARS CORPORATION

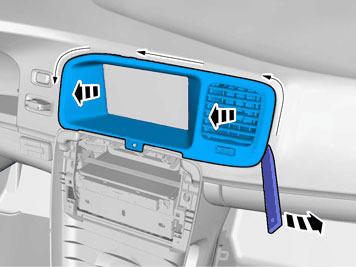

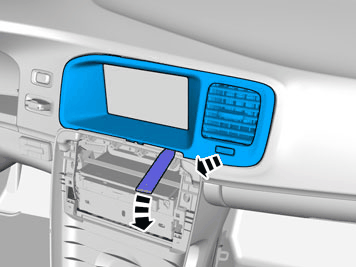

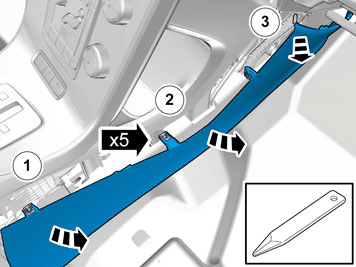

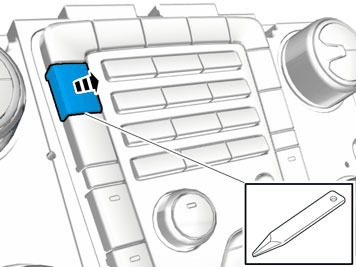

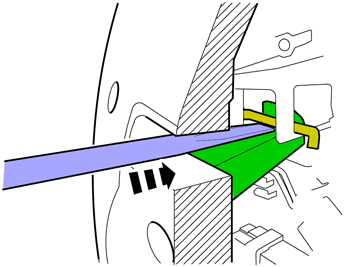

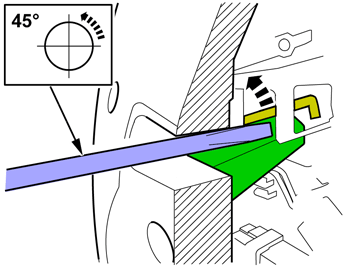

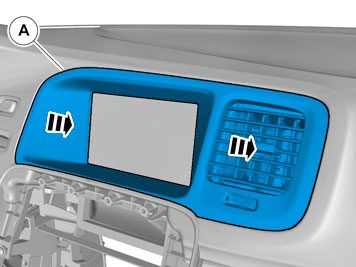

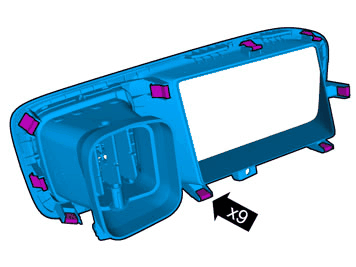

Carefully pry loose the bottom edge of the panel and then continue around the panel.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

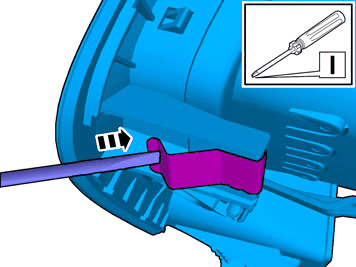

Use: Electrician's screwdriver

Courtesy of VOLVO CARS CORPORATION

The part is not to be reused.

Courtesy of VOLVO CARS CORPORATION

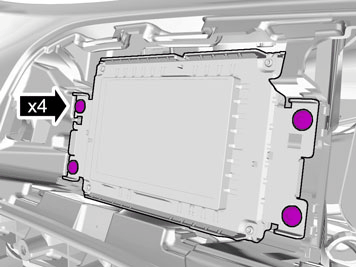

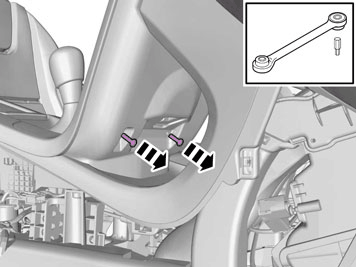

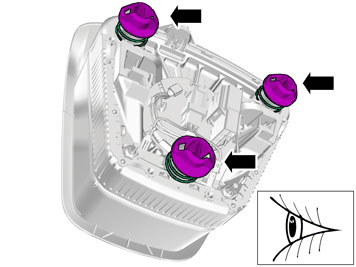

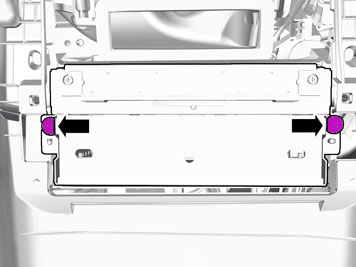

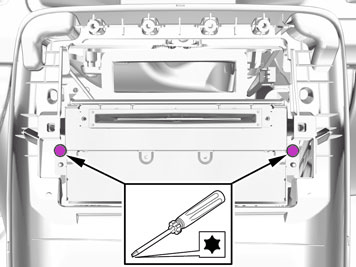

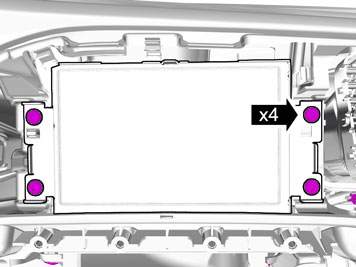

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

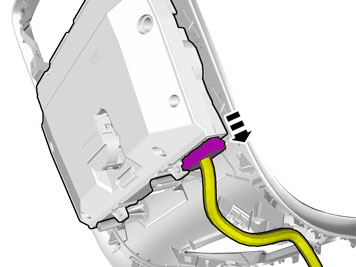

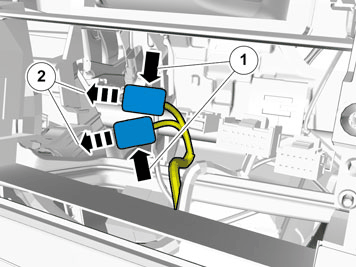

Disconnect the connector.

The part is not to be reused.

ACCESSORY INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

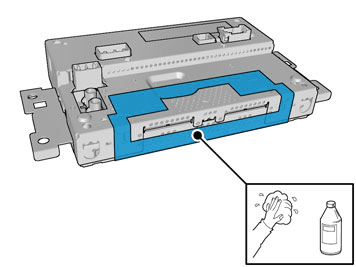

Clean the surface.

Use: Isopropanol, 1161721

Courtesy of VOLVO CARS CORPORATION

Remove the protective film.

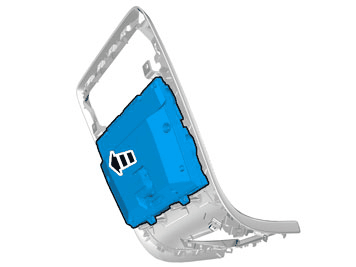

Install component that comes with the accessory kit.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the tape is fixed to the surface.

Courtesy of VOLVO CARS CORPORATION

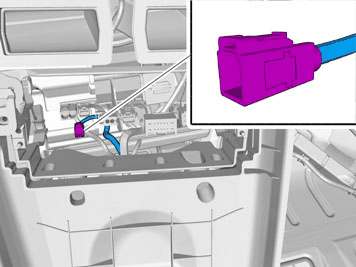

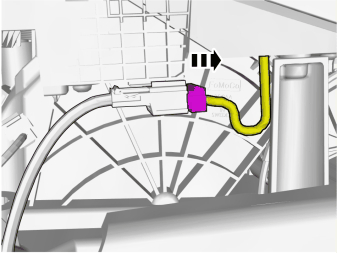

Locate the pre-routed connector.

Remove the foam bag.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

Connect the pre-routed cable.

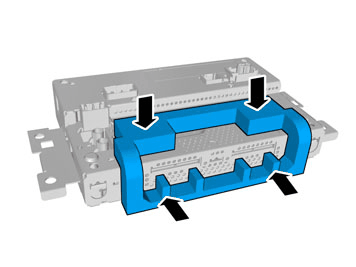

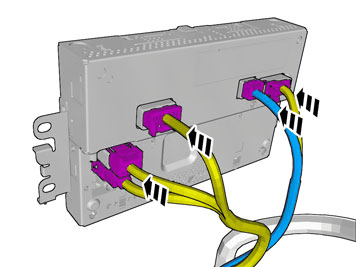

Connect the connectors.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Reinstall the screws.

Courtesy of VOLVO CARS CORPORATION

Install component that comes with the accessory kit.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Connect the connector temporarily.

Courtesy of VOLVO CARS CORPORATION

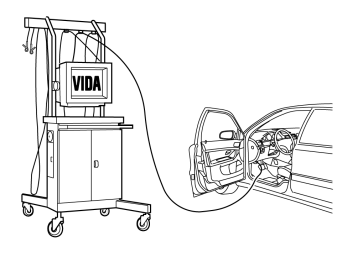

Download software (application) for the accessory's function according to the service information in VIDA. See VIDA or the Volvo accessories catalogue for software part number.

Order and download the appropriate Volvo software.

REMOVAL

ALL VEHICLES:

Courtesy of VOLVO CARS CORPORATION

Set the ignition key to position I.

Remove the battery's negative cable.

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Courtesy of VOLVO CARS CORPORATION

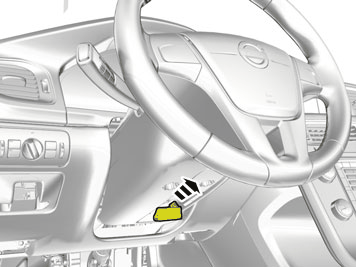

Release the lock.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

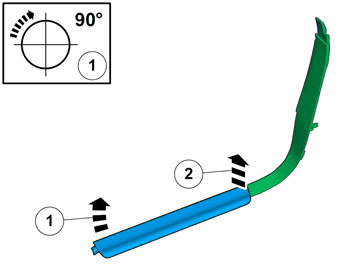

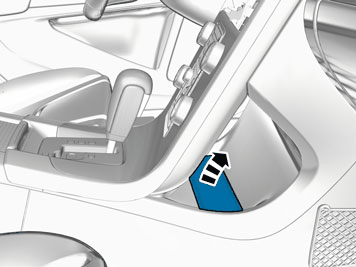

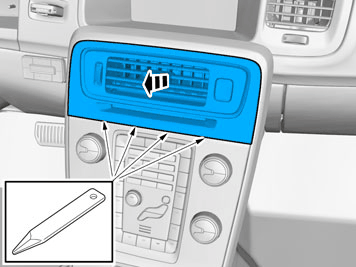

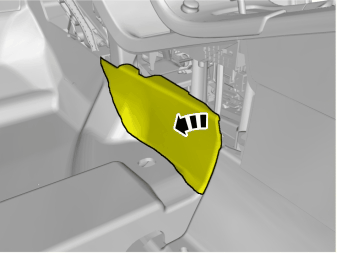

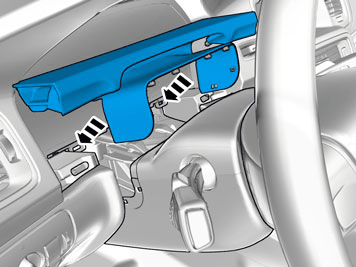

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

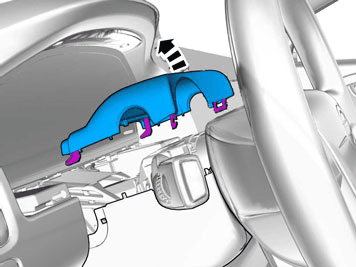

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Repeat the steps when removing on opposite side.

Courtesy of VOLVO CARS CORPORATION

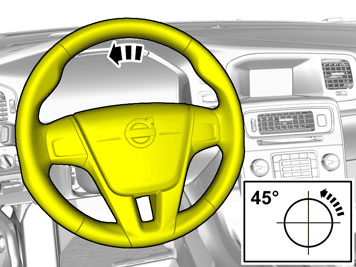

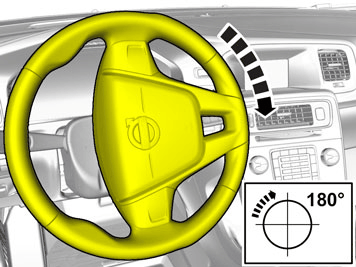

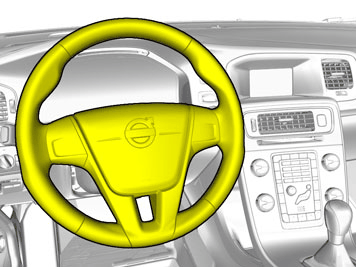

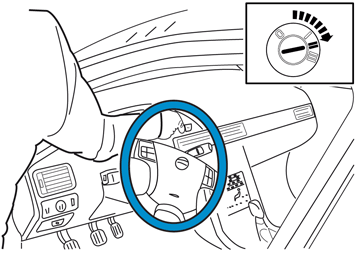

Turn the steering wheel into neutral position.

Courtesy of VOLVO CARS CORPORATION

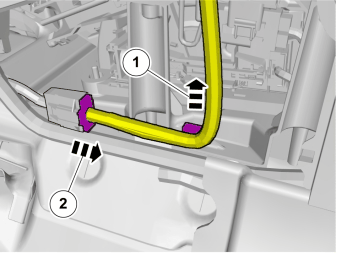

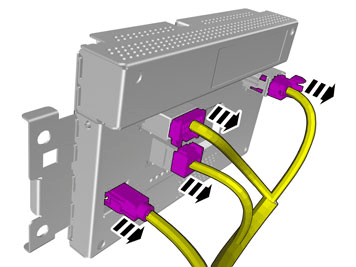

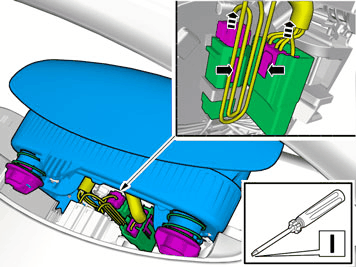

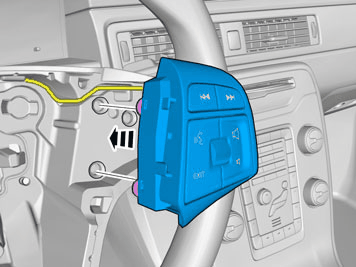

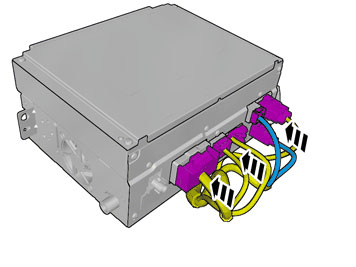

Release the connector catches.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

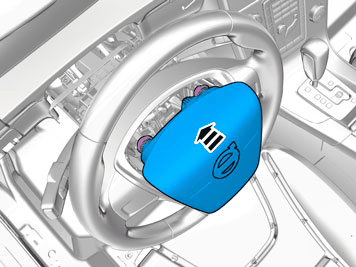

WARNING:

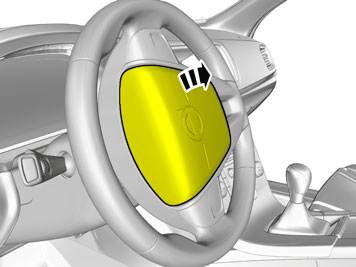

Place the airbag module with the front side facing up in a safe storage area during work.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires considerable force.

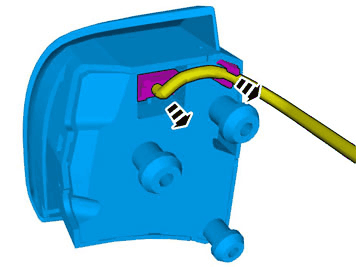

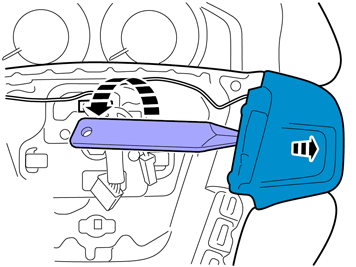

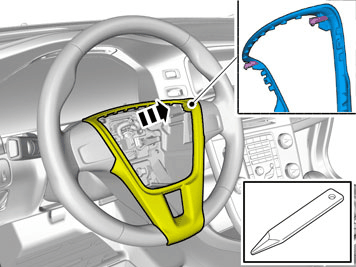

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires considerable force.

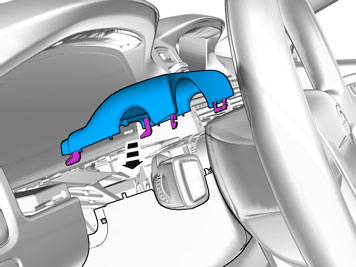

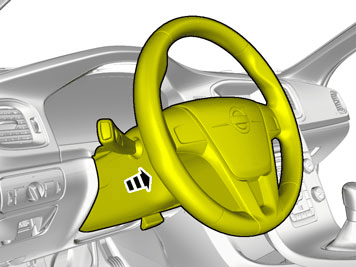

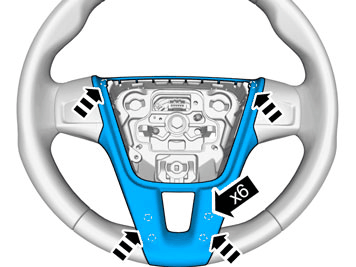

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires considerable force.

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

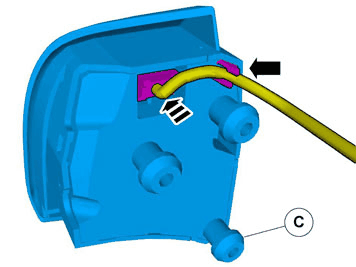

Disconnect any connector(s).

ACCESSORY INSTALLATION

Courtesy of VOLVO CARS CORPORATION

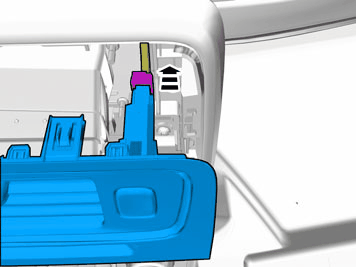

Install component that comes with the accessory kit.

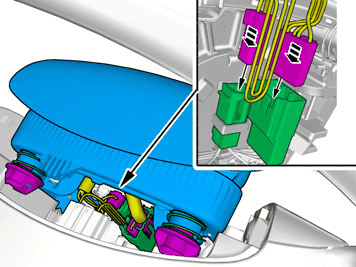

Connect the connector.

Courtesy of VOLVO CARS CORPORATION

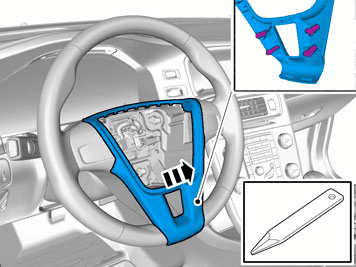

Install the panel.

Courtesy of VOLVO CARS CORPORATION

Install the panel.

Courtesy of VOLVO CARS CORPORATION

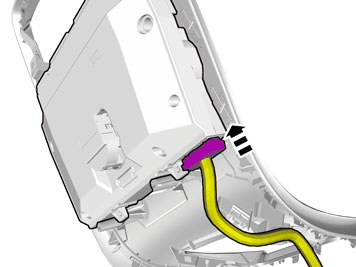

Connect the connectors.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Install the panel.

Courtesy of VOLVO CARS CORPORATION

Install the panel.

REMOVAL

Courtesy of VOLVO CARS CORPORATION

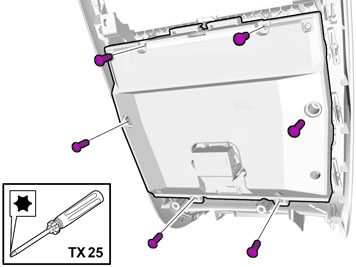

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

VEHICLES WITH VOLVO ON CALL:

Courtesy of VOLVO CARS CORPORATION

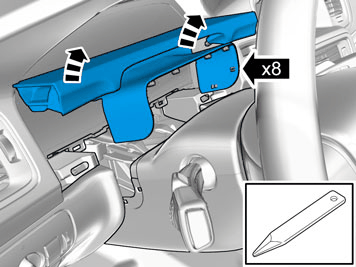

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

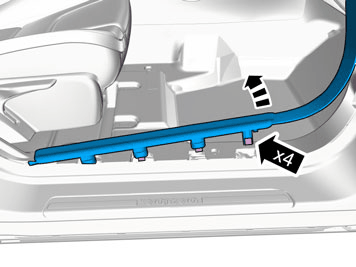

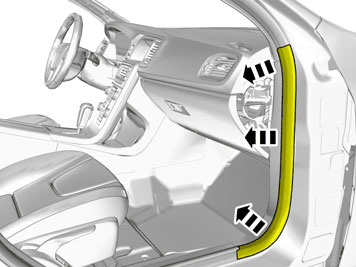

Remove the weatherstrip.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The front and upper sill panel must be removed and installed as one unit.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

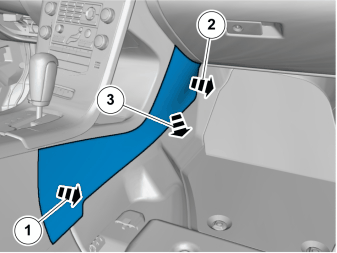

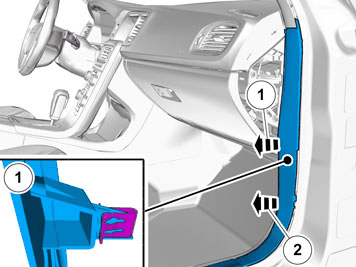

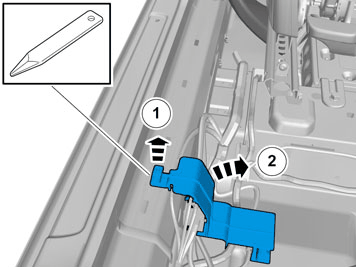

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

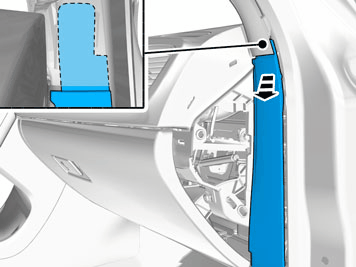

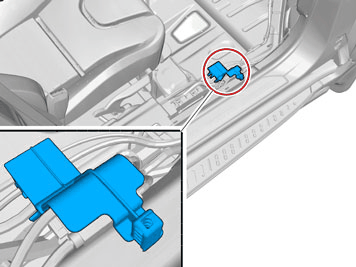

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

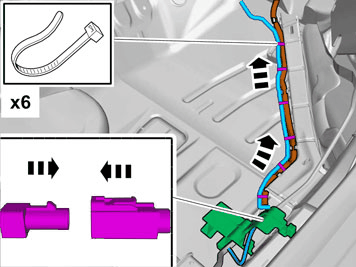

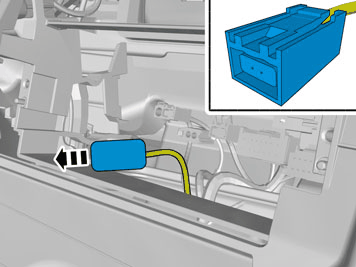

Locate the existing connectors in the vehicle's cable harness.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Locate the pre-routed connector.

Courtesy of VOLVO CARS CORPORATION

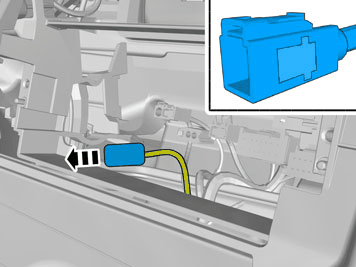

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Attach the connector to the wiring harness.

The cable harness must not be reused.

ACCESSORY INSTALLATION

Courtesy of VOLVO CARS CORPORATION

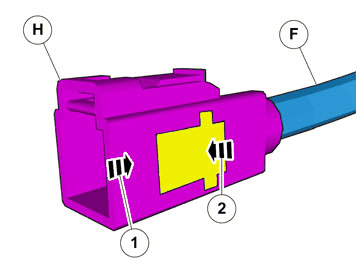

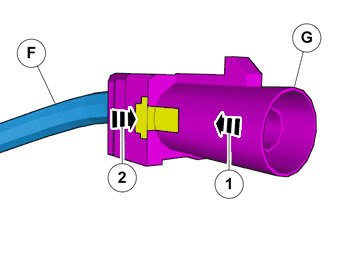

Connect the cable harness terminals in the connector as follows.

A click confirms that the component is in the correct position.

Depress the secondary lock.

Courtesy of VOLVO CARS CORPORATION

Connect the connector.

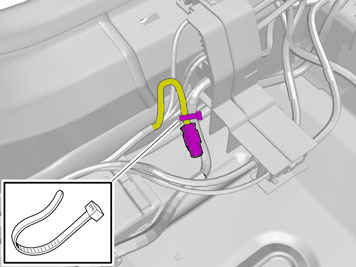

Route the cable harness to the existing cable harness.

Install the cable.

Courtesy of VOLVO CARS CORPORATION

Connect the cable harness terminals in the connector as follows.

A click confirms that the component is in the correct position.

Depress the secondary lock.

Courtesy of VOLVO CARS CORPORATION

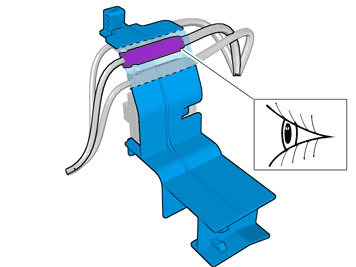

Place any excess inside the floor carpet.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

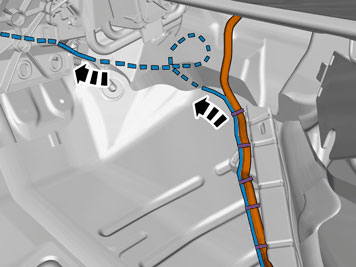

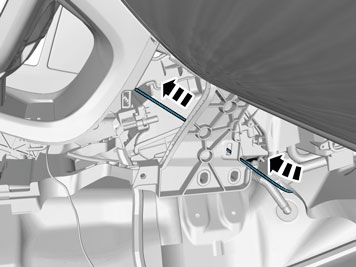

Pull the wiring through.

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES:

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH 5 INCH ICM-DISPLAY:

Courtesy of VOLVO CARS CORPORATION

Locate the pre-routed connectors.

Remove the foam bags.

VEHICLES WITH 7 INCH DISPLAY:

Courtesy of VOLVO CARS CORPORATION

Locate the pre-routed connector.

Remove the foam bag.

VEHICLES WITH VOLVO ON CALL:

Courtesy of VOLVO CARS CORPORATION

Locate the pre-routed connector.

Remove the foam bag.

ALL VEHICLES:

Courtesy of VOLVO CARS CORPORATION

Connect the pre-routed cables.

Connect the connectors.

Courtesy of VOLVO CARS CORPORATION

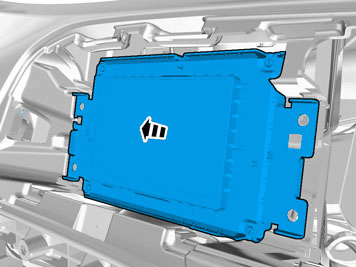

Install component that comes with the accessory kit.

Courtesy of VOLVO CARS CORPORATION

Reinstall the screws.

INSTALLATION

Reinstall the removed parts in reverse order.

Courtesy of VOLVO CARS CORPORATION

Reinstall the battery's negative cable.

Courtesy of VOLVO CARS CORPORATION

WARNING:

When switching the ignition on for the first time after a battery disconnect and connect, make sure to stand outside the vehicle and only reach into the vehicle keeping clear of the air bag deployment areas.

Courtesy of VOLVO CARS CORPORATION

Download software (application) for the accessory's function according to the service information in VIDA. See VIDA or the Volvo accessories catalogue for software part number.

Order and download the appropriate Volvo software.
