Cargo Compartment Lighting

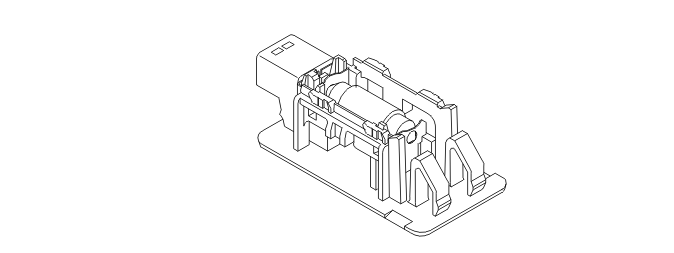

Fig 1: Identifying Cargo Compartment Lighting

Courtesy of VOLVO CARS CORPORATION

There is a lamp for cargo compartment lighting in the cargo compartment.

The lamp is located in the cargo compartment panel's roof (S40/C70), respectively in the cargo compartment's ceiling (C30/V50).

For the cargo compartment lighting to work, the relay for interior lighting must be activated.

There are diagnostics for the relay for interior lighting.
