Roof Bow: Removal

Removing the roof bow

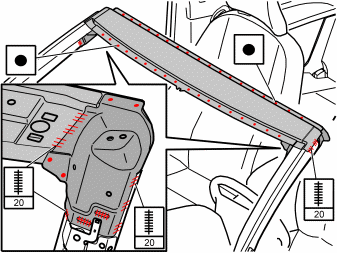

Fig 1: Roof Bow Weld Specifications And Locations

Courtesy of VOLVO CARS CORPORATION

Remove the outer part of the A-post, see A-PILLAR .

For further welding information, see WELDING, GENERAL .

For material information, see SHEET METAL, MATERIAL INFORMATION .

Weld as shown in the illustration.
