Header Rail Weatherstrip: Removal

Remove Header Rail Trim Panel; see HEADER RAIL TRIM PANEL .

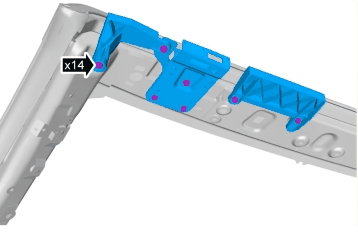

GLL155158Courtesy of VOLVO CARS CORPORATION

On both sides.

Torque:  M6

10 Nm

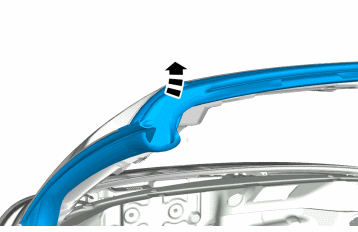

GLL159638Courtesy of VOLVO CARS CORPORATION
GLL159639Courtesy of VOLVO CARS CORPORATION
