Wheel Arch Rear: Installation

Installing the rear wheel housing

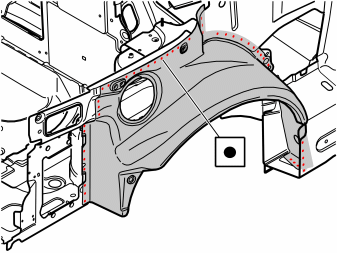

Fig 1: Rear Wheel Housing Installation Weld Locations

Courtesy of VOLVO CARS CORPORATION

See WELDING, GENERAL .

For material information, see SHEET METAL, MATERIAL INFORMATION .

Check the fit with the rear fender and door.

Seal the wheel housing, see BODY SEAL, SEALING DIAGRAM .

Install the rear fender, see FENDER  .

Install components, see SIDE SECTION, EXPOSING and REAR SECTION, EXPOSING (2006) ,REAR SECTION, EXPOSING (2007) , or REAR SECTION, EXPOSING (2008-2012) .

Rustproof. See: RUSTPROOFING .

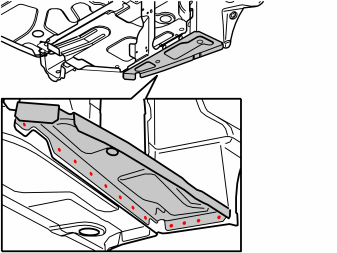

Fig 2: Rear Wheel Arch Installation Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

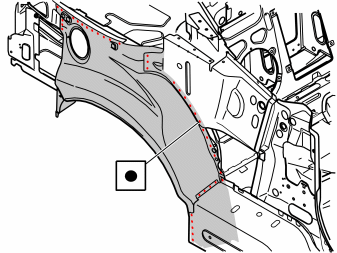

Fig 3: Rear Wheel Arch Installation Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
