Front Wheel Bearing: Installation

Installing the front wheel arch

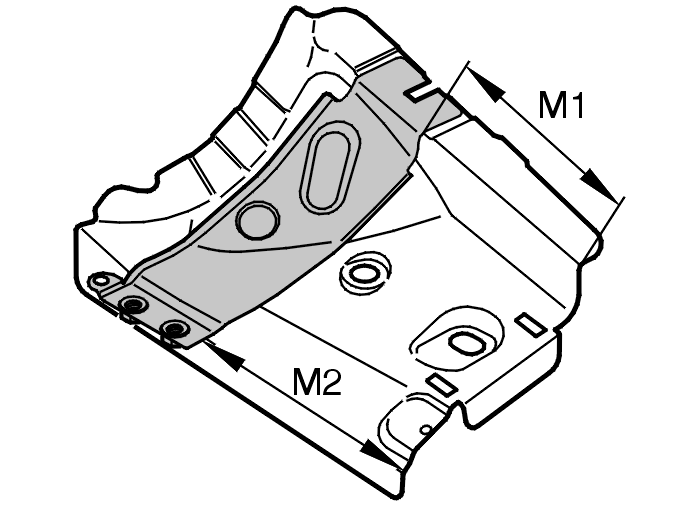

Fig 1: Battery Shelf Bracket Installation Weld Specifications And Locations

Courtesy of VOLVO CARS CORPORATION

Align and secure the wheel arch. See: FRONT END and SIDE MEMBERS, FRONT

Align the bracket on the battery shelf. See the dimensions below.

M1 = 136 mm

M2 = 146 mm

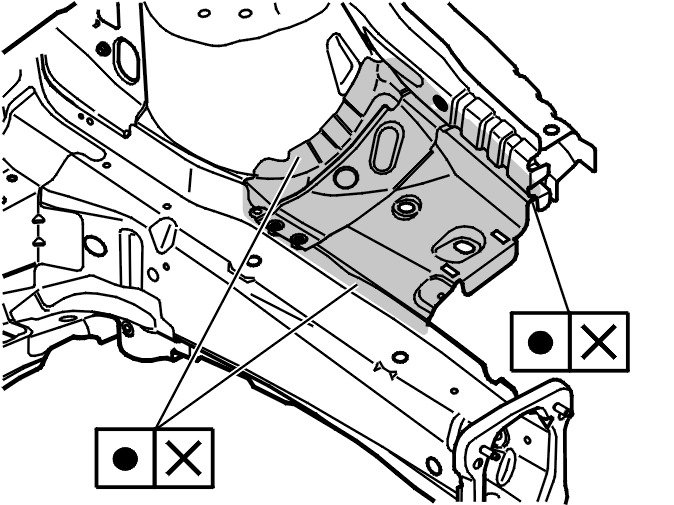

Fig 2: Battery Shelf Installation Weld Locations

Courtesy of VOLVO CARS CORPORATION

Weld the replacement part into place. Lens diameter: Ø 4.5 mm.

Rustproof. See: RUSTPROOFING .

Install components. See: FRONT SECTION, EXPOSING .
