Door Sill: Installation

Installing the sill

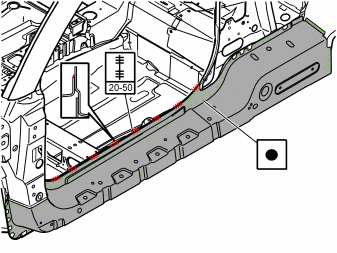

Fig 1: Door Sill Installation Weld Specifications And Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

For welding body components, see WELDING, GENERAL .

Apply welding primer.

Spot-weld the replacement part. Tip diameter: Ø 6 mm.

Also, see the illustration below for the location of the spot welds.

Install the B-post. See: B-POST  and the rear fender. See: FENDER  .

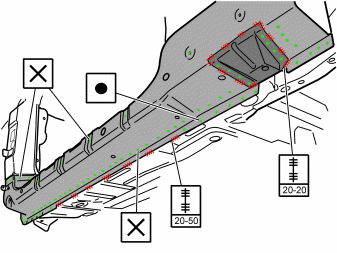

Fig 2: Door Sill Installation Weld Specifications And Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

Seal. See: BODY SEAL, SEALING DIAGRAM .

Install components, see SIDE SECTION, EXPOSING and REAR SECTION, EXPOSING (2006) ,REAR SECTION, EXPOSING (2007) , or REAR SECTION, EXPOSING (2008-2012) .

Rustproof. See: RUSTPROOFING .
