Body Side: A-Pillar: Removal

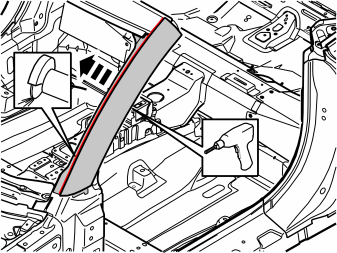

Fig 1: Upper A-Pillar Cut And Drill Locations
GLL153513Courtesy of VOLVO CARS CORPORATION

Remove components. See: SIDE SECTION, EXPOSING .

Determine the extent of the damage. See WINDSHIELD FRAME and BODY SIDE .

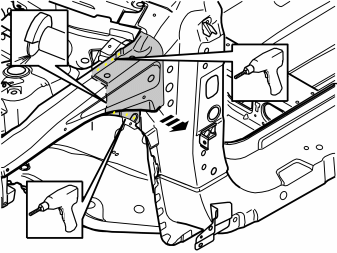

Fig 2: Outer Lower A-Pillar Removal Weld Locations (1 Of 3)
GLL153621Courtesy of VOLVO CARS CORPORATION

Drill and grind the sections shown in the illustration.

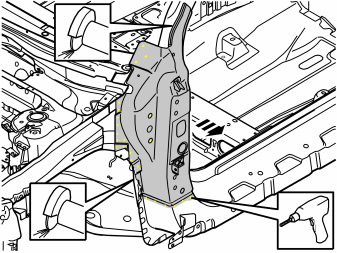

Fig 3: Outer Lower A-Pillar Removal Weld Locations (2 Of 3)
GLL153622Courtesy of VOLVO CARS CORPORATION

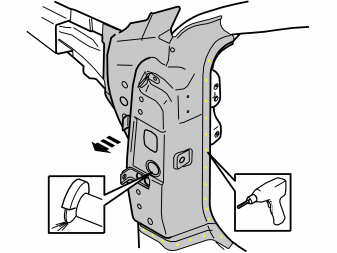

Fig 4: Outer Lower A-Pillar Removal Weld Locations (3 Of 3)
GLL153623Courtesy of VOLVO CARS CORPORATION

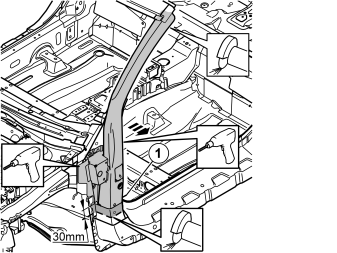

Fig 5: A-Pillar Reinforcement Removal Weld Locations, Cut Lines, Specifications And Measurement Points (1 Of 2)
GLL153624Courtesy of VOLVO CARS CORPORATION

When only replacing the A-post pipe, the pipe and the sill reinforcement must be cut at (1) as shown in the illustration.

At installation the sections must be welded along the entire joint.

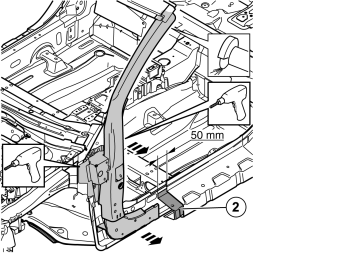

Fig 6: A-Pillar Reinforcement Removal Weld Locations, Cut Lines, Specifications And Measurement Points (2 Of 2)
GLL153625Courtesy of VOLVO CARS CORPORATION
NOTE:

The joints at (2) on the sill and sill reinforcement must separated by at least 50 mm.
