Climate Control System - Removal And Installation
>>
Control (2010-2013)
>>
Climate Control Module (CCM)
>>
Removal
>>
Removing The Climate Control Module (CCM)
Removing The Climate Control Module (CCM)

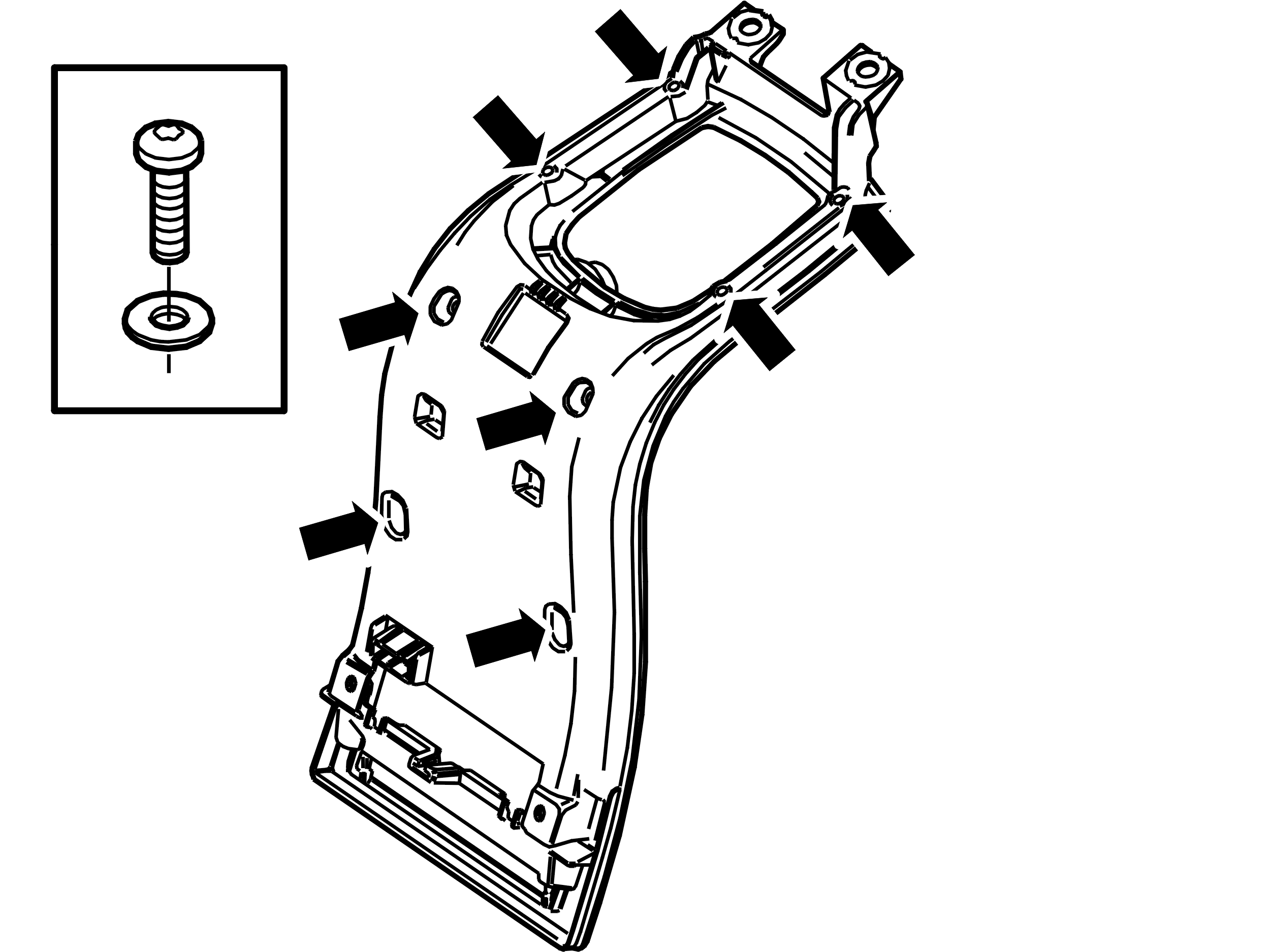

Fig 1: Identifying Screws
Courtesy of VOLVO CARS CORPORATION
Remove:
the 8 screws.
Fig 2: Identifying Climate Control Module (CCM) Screws
Courtesy of VOLVO CARS CORPORATION
the 4 screws
the climate control module (CCM).
