Accessories Electronic Module (AEM): Notes

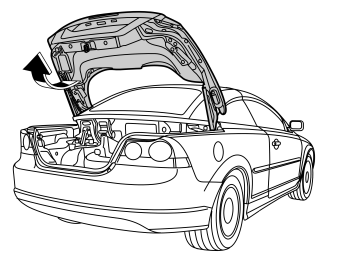

• Open the boot lid/tailgate.

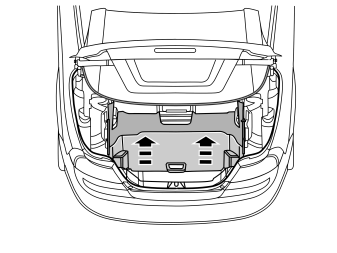

• Lift up the cargo compartment divider.

• Remove the covers on each side of the divider.

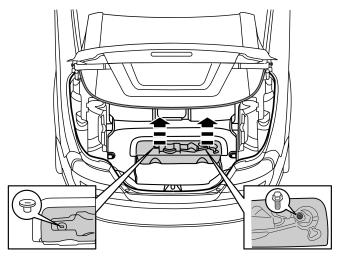

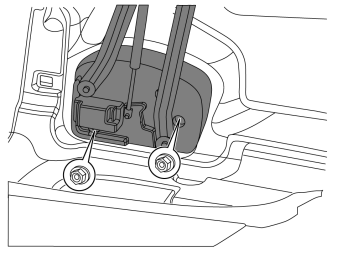

• Unscrew the two nuts 4 revolutions (on each side of the divider).

• Lower the divider slightly.

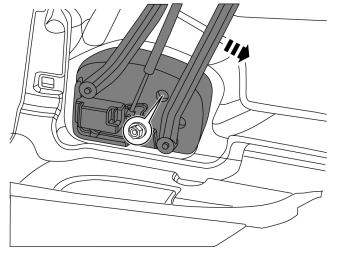

• Unscrew the third nut on each side of the divider four turns.

• Lower the divider completely.

• Detach the wire frame from the clip.

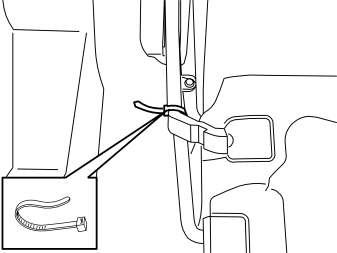

• Use a cable tie or the like to lock the dividers two arms on the right and left side.

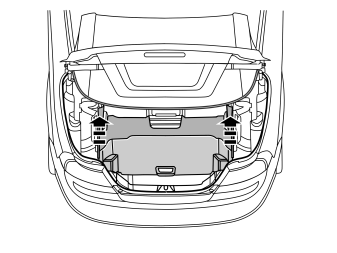

• Remove the partition by taking hold of the arms and lifting upward.

Remove:

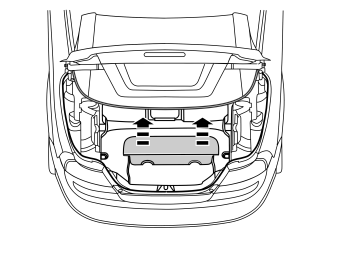

• the cover of the toolbox.
• the spare wheel, if in place.

• Take the tools out of the toolbox.

Remove:

• the clip.
• the screw.
• the toolbox.

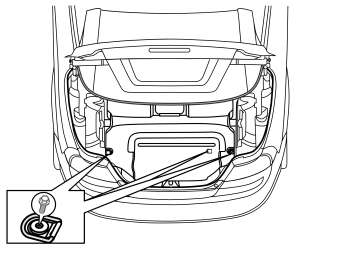

• Remove the three screws and the lashing eyes from the floor.

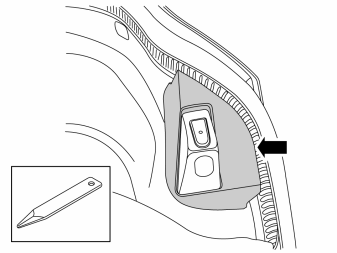

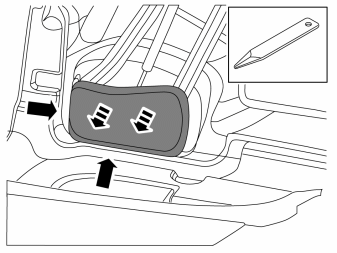

• Remove the cover from the trunk lid stop. Use a weatherstrip tool to pry between the cover and the stop to release the catches.

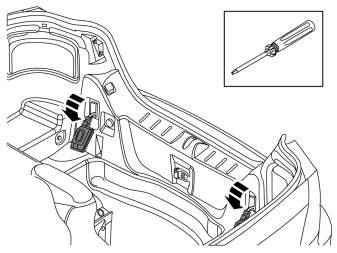

• Remove the two light bulbs by pressing in the two catches at the top with a screwdriver.
