Adjusting Rear Toe Angle
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

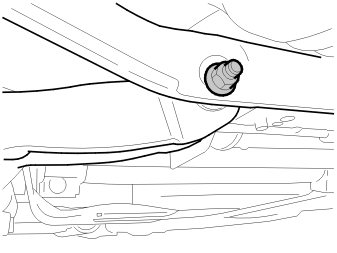

Slacken off the inner nut on the lower control arm.
Use the eccentric screw to adjust toe angle to the correct value. See WHEEL CAMBERS .
Tighten the nuts slightly.
Check the thrust angle. If it does not comply with the specified value, undo the nuts and readjust the toe angle.
Tighten the nut. Tighten to 100 Nm .
