Battery And Mounting - Removal, Replacement And Installation: Battery: Removal

NOTE: Removal steps in this procedure may contain installation details.

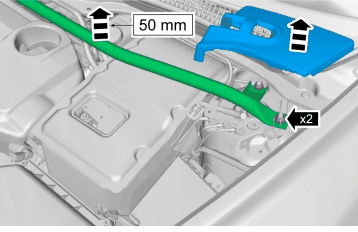

Fig 1: Identifying Underhood Torsion Rod, Nuts And Cover

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

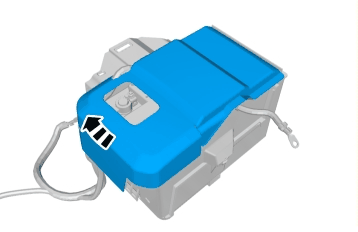

Fig 2: View Of Battery And Cover

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, see BATTERY DISCONNECTING AND CONNECTING

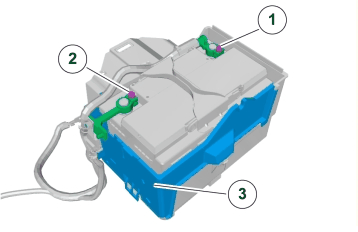

Fig 3: Locating Battery Box And Terminal Connector Bolts

Courtesy of VOLVO CARS CORPORATION

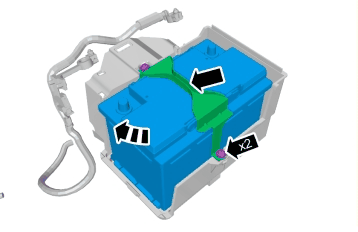

Fig 4: Identifying Battery, Holder And Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
