Trunk Lid, Tailgate With Hinge And Support: Tailgate: Notes

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

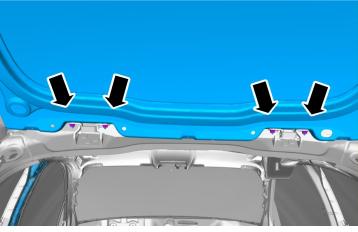

Fig 1: Removing Tailgate (1 Of 5)

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

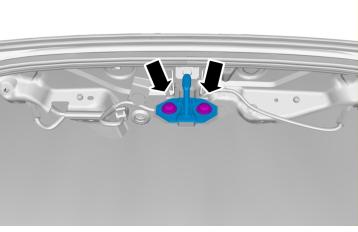

Fig 2: Removing Tailgate (2 Of 5)

Courtesy of VOLVO CARS CORPORATION

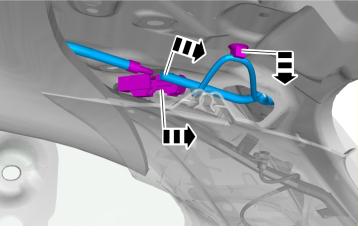

Fig 3: Removing Tailgate (3 Of 5)

Courtesy of VOLVO CARS CORPORATION

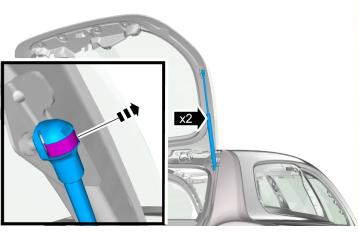

Fig 4: Removing Tailgate (4 Of 5)

Courtesy of VOLVO CARS CORPORATION

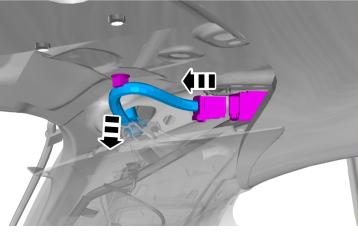

Fig 5: Removing Tailgate (5 Of 5)

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

Install in reverse order.

Adjust tailgate. See DOORS AND HATCHES .
