Trunk Lid/Tailgate Lock Mechanism: Removal

NOTE:

Removal steps in this procedure may contain installation details.

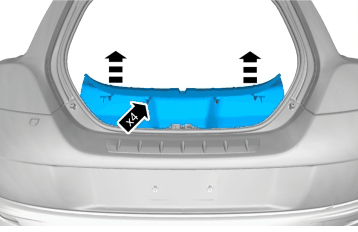

Fig 1: Removing Trunk Lid/Tailgate Lock Mechanism (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

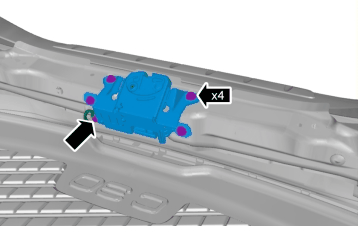

Fig 2: Removing Trunk Lid/Tailgate Lock Mechanism (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Torque: Door latch to luggage compartment lid

20 Nm
