Installing The Condenser

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

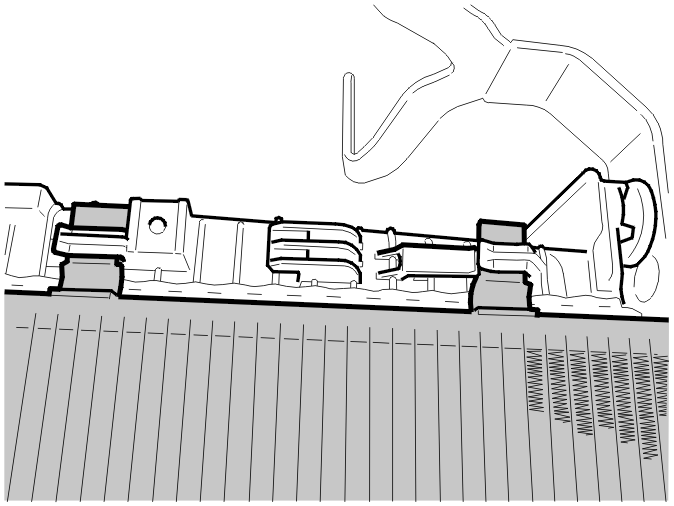

Fig 1: Installing The Condenser
GLL128959Courtesy of VOLVO CARS CORPORATION

Fill the condenser with oil. See AC-SYSTEM, OIL, REFILLING .

Press the condenser into the mounting points.

NOTE:

Ensure that both retaining clips secure the condenser.
