Installing Parts On Engine Block, Continued

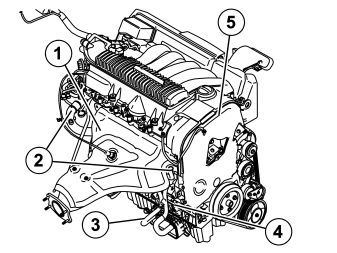

Fig 1: Identifying Engine Block Components

Courtesy of VOLVO CARS CORPORATION

Install:

• the oil cooler and the rubber seals
• the coolant pipe (inlet water pump), including hoses, parted at the hoses to the oil cooler
• the bearing carrier for the right drive shaft
• the heat shield plate and exhaust manifold
• the upper and front timing gear casing

Fill oil.
