RSE Opening Mechanism - Modification (TJ25377)
WARNING: This page is about the XC90 Base, AWD, which is a different variant/trim than selected.
Publication date: 2012-09-18Reference number: TJ25377
RSE OPENING MECHANISM - MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ25377, Date of Issue:
September 18, 2012
| VOLVO: | 2005-2013 XC90; 2007-2013 S80; 2008-2010 V70; 2008-2013 XC70; 2010-2013 XC60; 2011-2013 S60 |
| SECTION: | Head Restraint |
| GROUP: | 8826 |
| Related Ref. Number(s): | TJ25377 |
ATTACHMENT
ATTACHMENT
| File Name | File Size |
|---|---|
| TJ 25377.pdf | 0.2322 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2007-2013 | 0000000-9999999 | 0-0 | |||||||
| 124 | 2011-2013 | 0000000-9999999 | 0-0 | |||||||
| 124 | 2011-2013 | 0000000-9999999 | 0-0 | |||||||
| 134 | 2011-2013 | 22 | 0000000-9999999 | 0-0 | ||||||
| 134 | 2011-2013 | 22 | 0000000-9999999 | 0-0 | ||||||
| 134 | 2011-2013 | 0000000-9999999 | 0-0 | |||||||
| 135 | 2007-2010 | 0000000-9999999 | 0-0 | |||||||
| 135 | 2011-2013 | 0000000-9999999 | 0-0 | |||||||
| 135 | 2011-2013 | 0000000-9999999 | 0-0 | |||||||
| 136 | 2008-2013 | 0000000-9999999 | 0-0 | |||||||
| 156 | 2010-2013 | 22 | 0000000-9999999 | 0-0 | ||||||
| 156 | 2010-2013 | 22 | 0000000-9999999 | 0-0 | ||||||
| 156 | 2010-2013 | 0000000-9999999 | 0-0 | |||||||
| 275 | 2005-2013 | 0000000-9999999 | 0-0 |
CSC CUSTOMER SYMPTOM CODES
CSC CUSTOMER SYMPTOM CODES
| Code | Description |
|---|---|
| 3D | Accessory installation/Accessory installation |
| 8Z | DVD player/Other DVD player problems |
| XF | Rear seat entertainment/No/reduced/incorrect function |
| 3L | Technician information/Repair information/Not for warranty use |
TEXT
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
RSE = Rear Seat Entertainment
NOTE:
If using a printed copy of this Technical Journal, first check for the latest online version.
DESCRIPTION
Modification of the lid for the rear DVD player (RSE) due to problems with extreme opening force.
SERVICE
Modify rear DVD player (RSE), according to attached instruction.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO
Operation number *99400-2* - **General check/adjust ** - "0.1 hrs"
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
To view TJ attachment continue to next page:
TJ INSTRUCTION RSE OPENING MECHANISM - MODIFICATION
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct

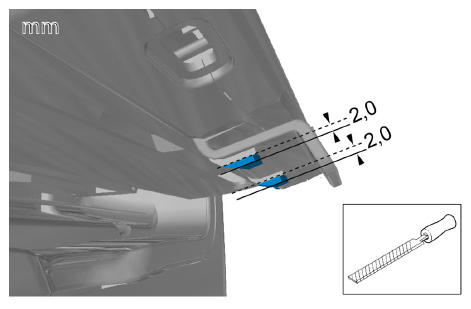

Adjustment
