Side Members, Front [2010 - 2017]

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

1. Measure from the centre
2. Measure from the edge
3. Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. See image. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

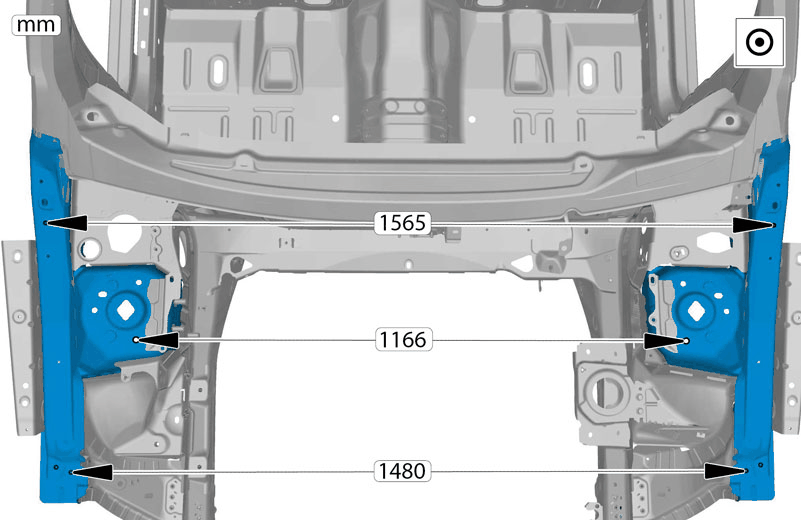

Fig 2: Front Side Member Position Dimensions And Measurement Locations (1 Of 8)

Courtesy of VOLVO CARS CORPORATION

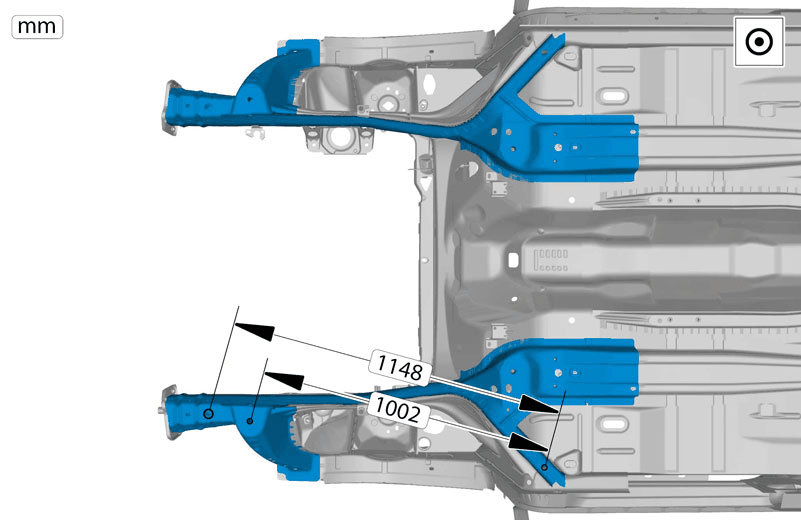

Fig 3: Front Side Member Position Dimensions And Measurement Locations (2 Of 8)

Courtesy of VOLVO CARS CORPORATION

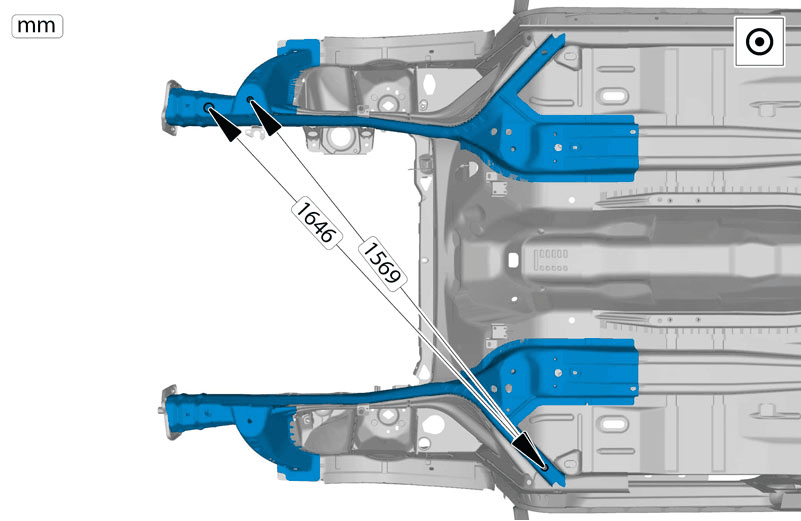

Fig 4: Front Side Member Position Dimensions And Measurement Locations (3 Of 8)

Courtesy of VOLVO CARS CORPORATION

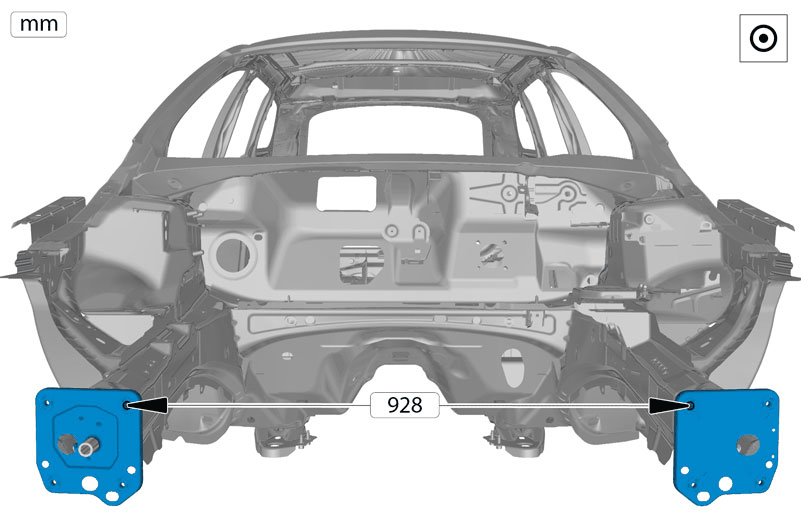

Fig 5: Front Side Member Position Dimensions And Measurement Locations (4 Of 8)

Courtesy of VOLVO CARS CORPORATION

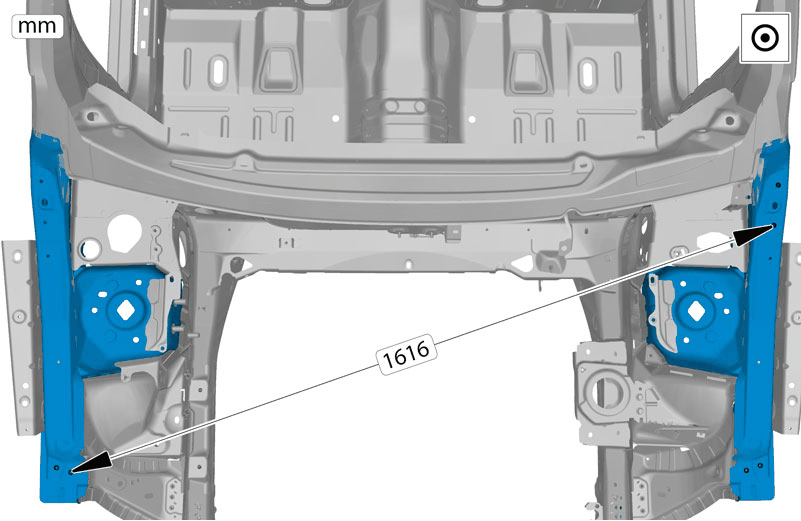

Fig 6: Front Side Member Position Dimensions And Measurement Locations (5 Of 8)

Courtesy of VOLVO CARS CORPORATION

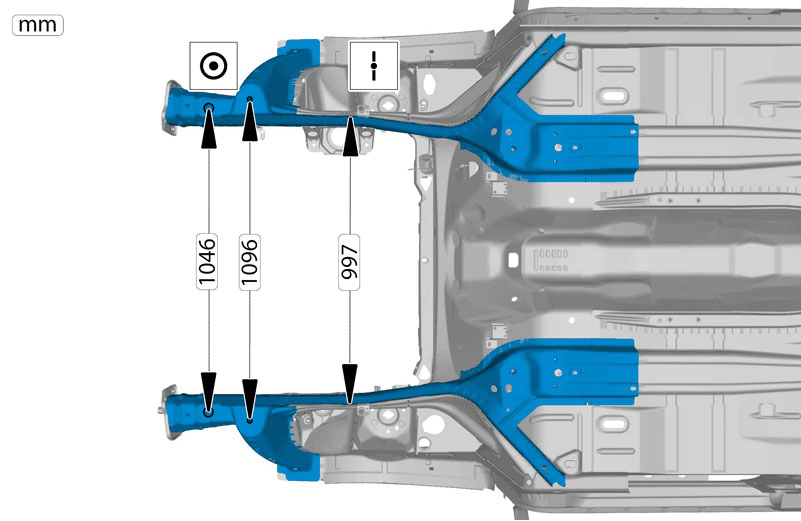

Fig 7: Front Side Member Position Dimensions And Measurement Locations (6 Of 8)

Courtesy of VOLVO CARS CORPORATION

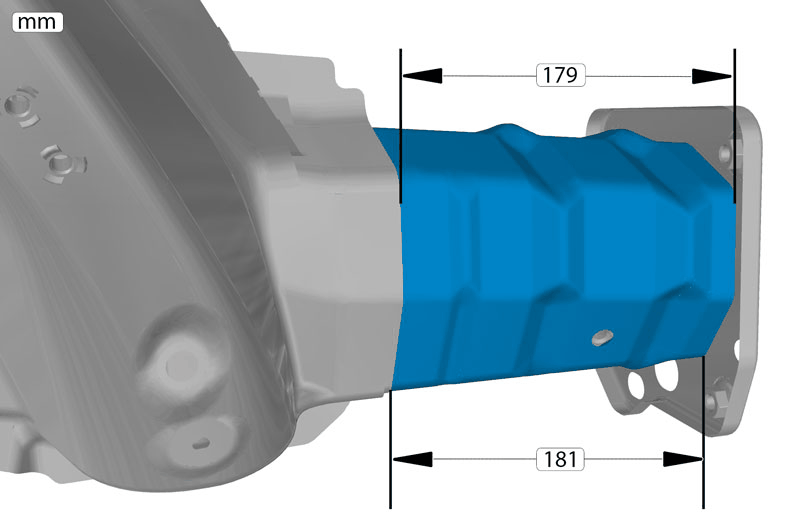

Fig 8: Front Side Member Position Dimensions And Measurement Locations (7 Of 8)

Courtesy of VOLVO CARS CORPORATION

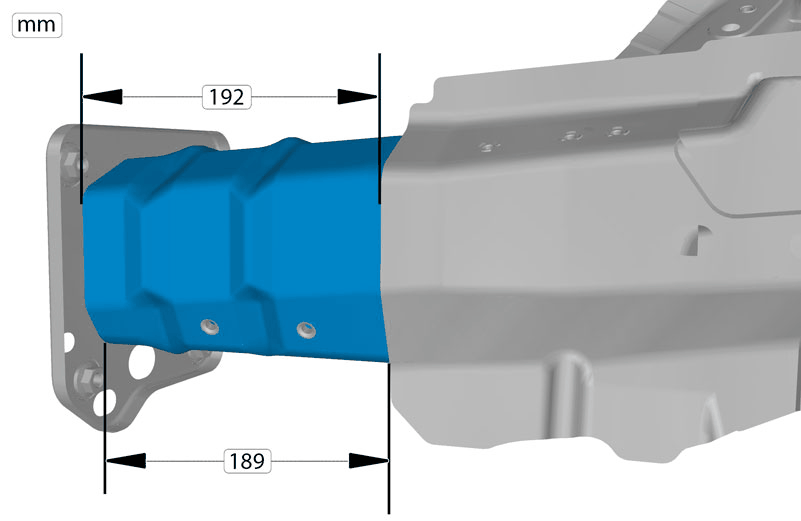

Fig 9: Front Side Member Position Dimensions And Measurement Locations (8 Of 8)
