Rear Section [2010 - 2017]

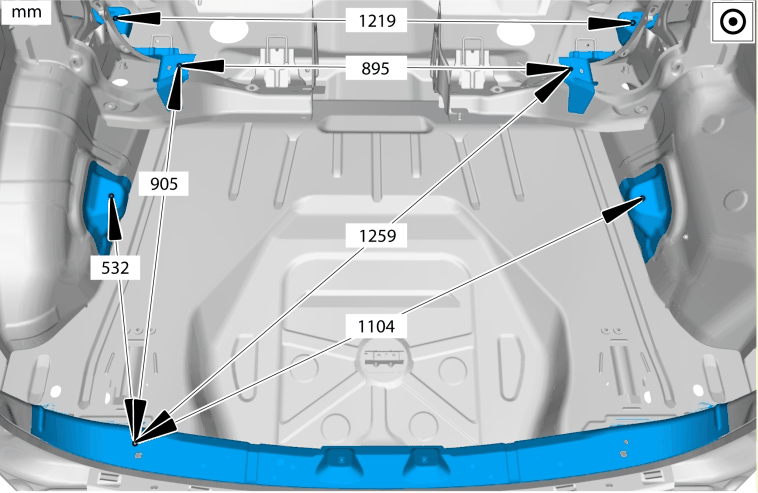

Fig 1: Rear Body Position Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

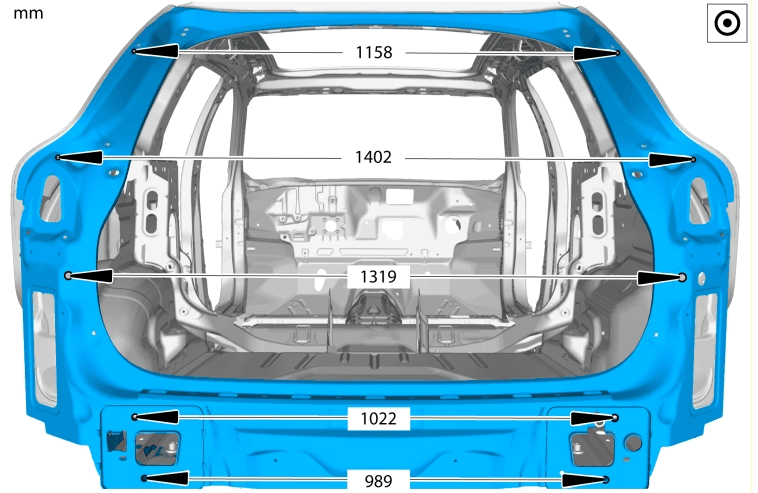

Fig 2: Rear Body Position Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

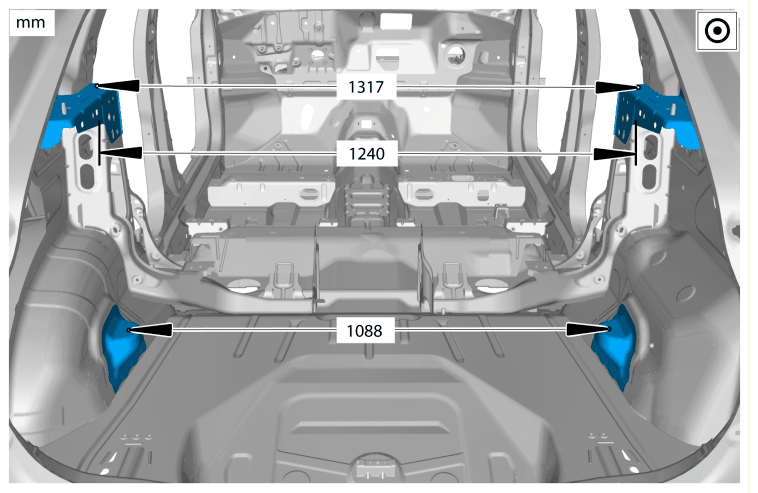

Fig 3: Rear Body Position Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION
