Infotainment Keypad

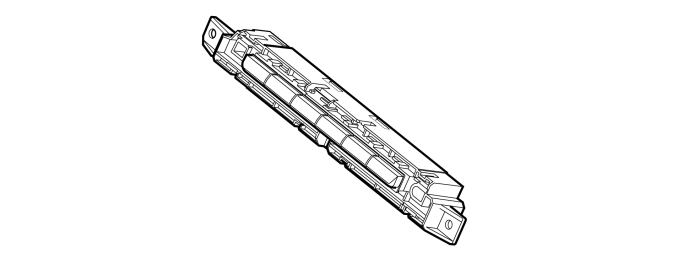

GLL1030086Courtesy of VOLVO CARS CORPORATION

The infotainment keypad is in the center console above the Climate control module (CCM). The infrared sensor is between the AM button and the Eject button.

The infotainment keypad can be diagnosed.
