Locking System Receiver [2009-2017]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

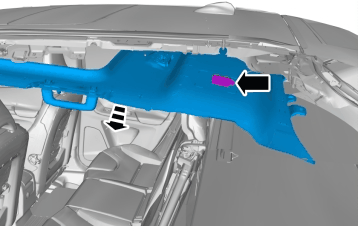

• Left panel B-pillar, refer to: B-PILLAR TRIM PANEL
• Left side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
