Roof, Windshield And Rear Windshield Frame: Roof

NOTE:

As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Fig 1: Body Dimension Measuring Point Symbols

GLL103313

Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

GLL103386

Courtesy of VOLVO CARS OF NORTH AMERICA.

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess (see the illustration above).

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

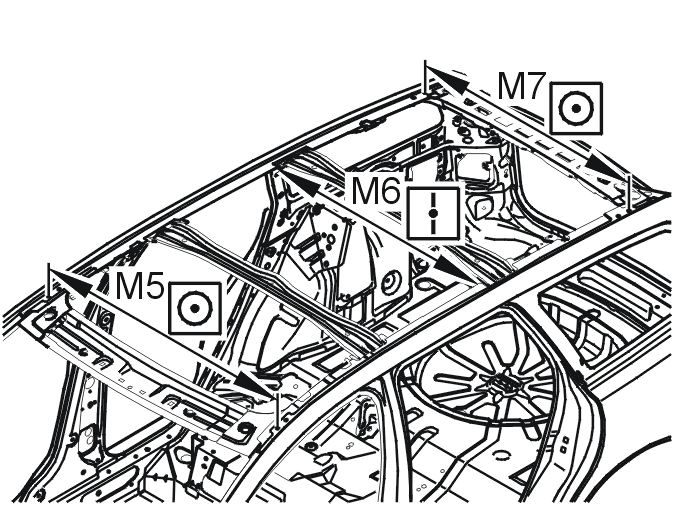

Fig 2: Roof Panel Measurement Points (1 Of 2)

GLL142115

Courtesy of VOLVO CARS OF NORTH AMERICA.

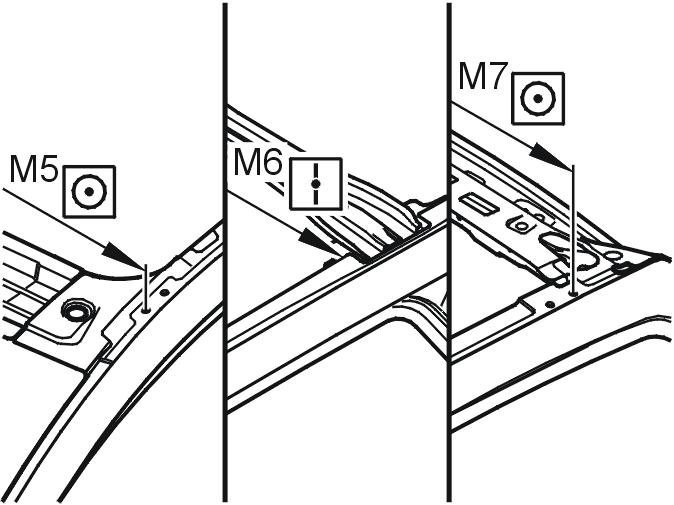

Fig 3: Roof Panel Measurement Points (2 Of 2)

GLL142116

Courtesy of VOLVO CARS OF NORTH AMERICA.

M5 = 1125 mm

M6 = 987 mm

M7 = 998 mm

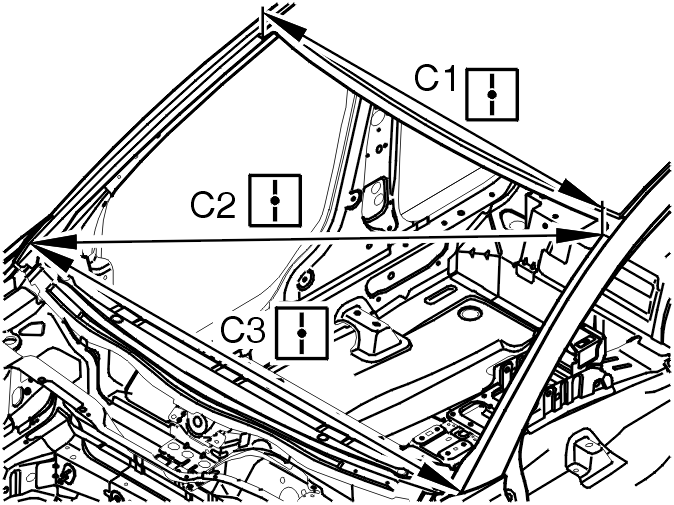

Fig 4: Windshield Opening Measurement Points

GLL128796

Courtesy of VOLVO CARS OF NORTH AMERICA.

C1 = 1157 mm

C2 = 1510 mm

C3 = 1473 mm

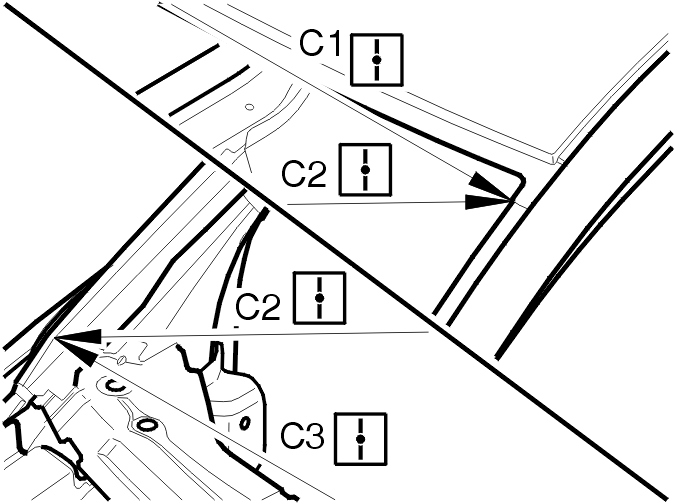

Fig 5: Rear Window Opening Measurement Points

GLL128808

Courtesy of VOLVO CARS OF NORTH AMERICA.
