Front Side Member Dimensions

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS OF NORTH AMERICA.

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess. See the illustration above.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

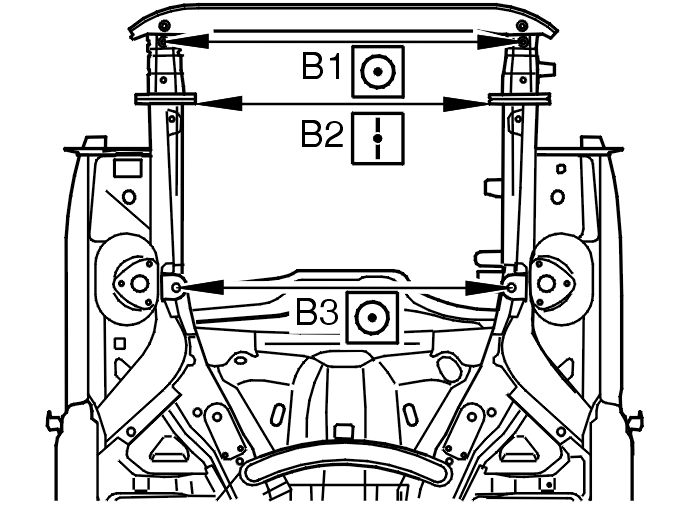

Fig 2: Front Side Member Position Measurement Points (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

B1 = 1012 mm

B2 = 826 mm

B3 = 945 mm

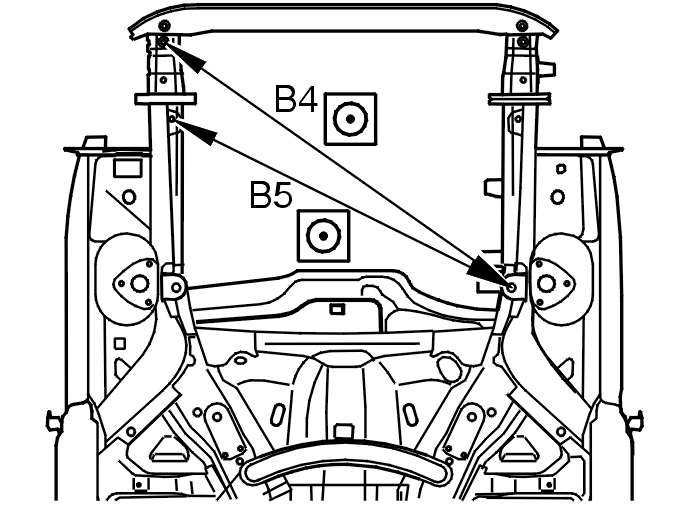

Fig 3: Front Side Member Position Measurement Points (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

B4 = 1198 mm

B5 = 1063 mm

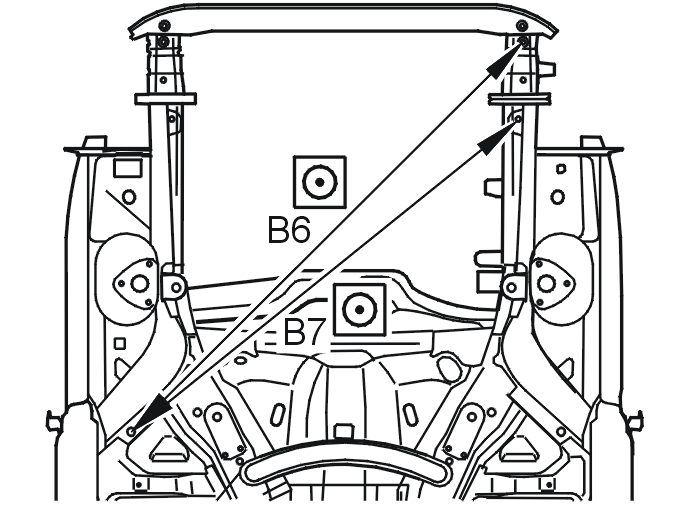

Fig 4: Front Side Member Position Measurement Points (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

B6 = 1559 mm

B7 = 1400 mm
