Headlight Washers: Removal

Remove the following items:

• Headlamps, see HEADLAMPS
• Cover bumper front, see COVER BUMPER FRONT (2005-2007) or COVER BUMPER FRONT (B5244S4; B5244S7; 2010)

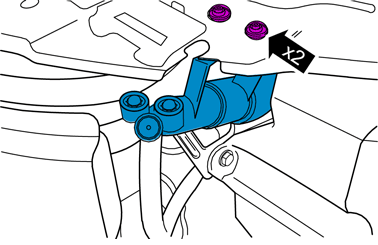

Fig 1: Identifying Headlight Washer Components (1 of 2)

Courtesy of VOLVO CARS CORPORATION

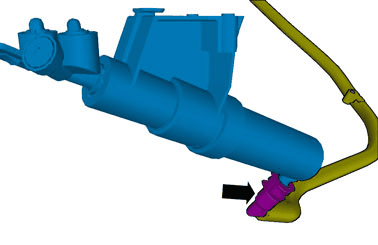

Fig 2: Identifying Headlight Washer Components (2 of 2)

Courtesy of VOLVO CARS CORPORATION
