Receiver Lock System Keyless Entry (RKE): Removal

Detach front edge of headlining with roof hatch, see HEADLINING WITH SUN ROOF

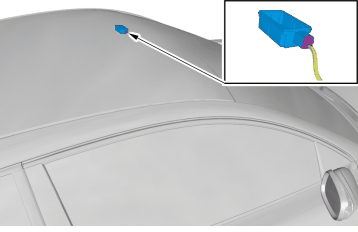

Fig 1: Locating Locking System Receiver
GLL168134Courtesy of VOLVO CARS CORPORATION

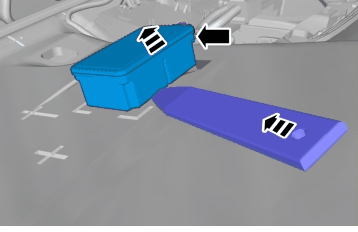

Fig 2: Removing Locking System Receiver
GLL168132Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care not to crease the headliner.
