Roof Panel: Installation

Fig 1: Roof Panel Component Location

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

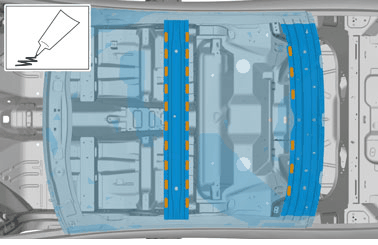

Use:  Sealing compound, 1161767

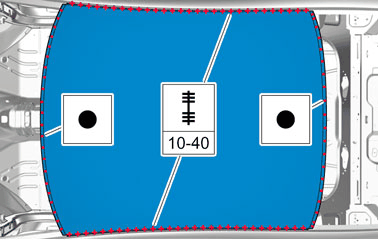

Fig 2: Roof Panel Installation Specifications And Locations

Courtesy of VOLVO CARS CORPORATION

Use:  Masking tape, 9511050-8

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

See information about paint; refer to PAINT .

Install the roof section; refer to ROOF SECTION, EXPOSING .
