Rear Section External

For information on welding, refer to WELDING, GENERAL .

Remove the rear section; refer to REAR SECTION, EXPOSING .

See information about side members rear; refer to SIDE MEMBERS REAR .

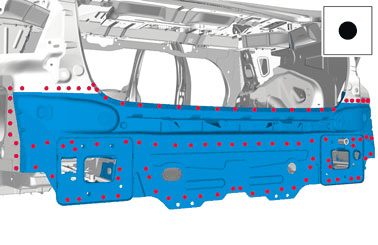

Fig 1: Rear Body Panel Component Location

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

To install, reverse the removal procedure.

Perform collision protection unit from behind front seat check; COLLISION PROTECTION UNIT FROM BEHIND FRONT SEAT CHECK .
