Rear Fender

Materials
Designation  Part number
Seal 6817640
NOTE:

Removal steps in this procedure may contain installation details.

For information on welding, refer to WELDING, GENERAL .

Remove the side section; refer to SIDE SECTION, EXPOSING .

Remove the rear section; refer to REAR SECTION, EXPOSING .

See information about door and lids; refer to DOORS AND LIDS .

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

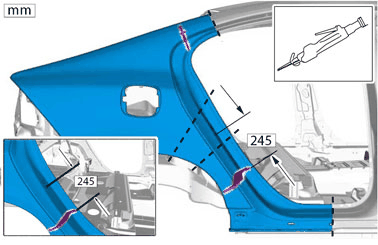

Fig 1: Outer Rear Fender Component, Cut Line Measurements And Locations (1 Of 2)
GLL1023543Courtesy of VOLVO CARS CORPORATION

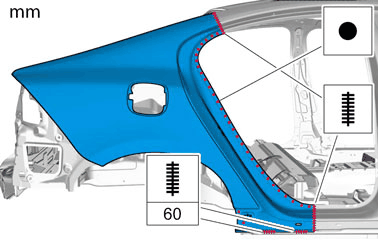

Fig 2: Outer Rear Fender Cut Line Measurements And Locations (2 Of 2)
GLL174495Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 6817640

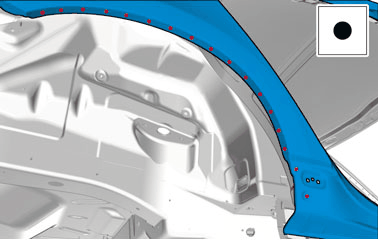

GLL174496Courtesy of VOLVO CARS CORPORATION

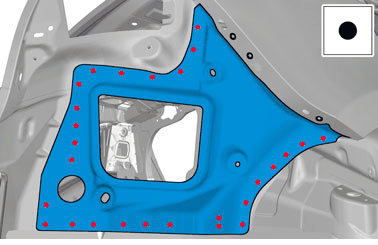

GLL174498Courtesy of VOLVO CARS CORPORATION

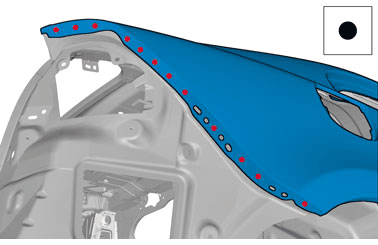

GLL174497Courtesy of VOLVO CARS CORPORATION

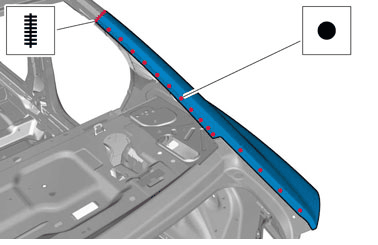

GLL174499Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

See information about paint; refer to PAINT .

To install, reverse the removal procedure.
