Component Location, Headlamp Control Module (HCM) [2011-2012]

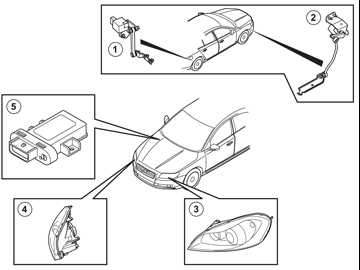

GLL166594Courtesy of VOLVO CARS CORPORATION

Overview

  1. Rear position sensor
  2. Front position sensor
  3. Left headlamp control unit (LHCU)
  4. Right headlamp control unit (RHCU)
  5. Headlamp Control Module (HCM)
