Sun Roof Electrical Function

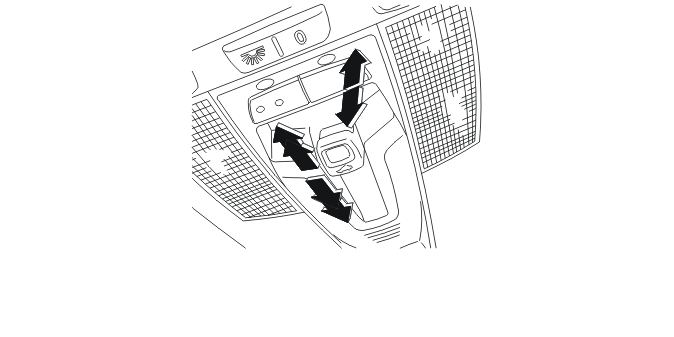

The sun roof controls are located in the control unit for the roof lamp. The controls work in two different ways:
- Manual operation: Move the control backwards or forwards to the pressure point. The sun roof moves to the fully open or closed position as long as the control is held in this position.
- Automatic operation: Move the control over the pressure point position to the rear or front limit position and release. The sun roof is then opened fully or closed fully.
WARNING:
The sun roof anti-trapping device only works during automatic closing, not manual.
To set the sun roof in ventilation position, press the rear edge of the control upwards. To close, pull the rear edge of the control down.
It is possible to move automatically from ventilation position to fully open sun roof.
It is also possible to close the sun roof by holding the lock button on the remote control (with the integrated key) pressed for two seconds. (Does not apply to the USA market.) Press the lock button again to interrupt closing. It is also possible to close the sun roof by pressing the inner lock button "Lock" for two seconds.
