Exploded View Of Starter Motor

Fig 1: Exploded View Of Starter Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

The starter motor consists of:

1. Drive cover
2. Gear wheel
3. Solenoid magnet
4. Battery terminal
5. Rear end and bearing
6. Carbon brush holder and carbon brushes
7. Commutator
8. Armature
9. Permanent magnet
10. Armature housing
11. Planetary train
12. Lever with free rotating clutch
13. Pinion engaging drive.

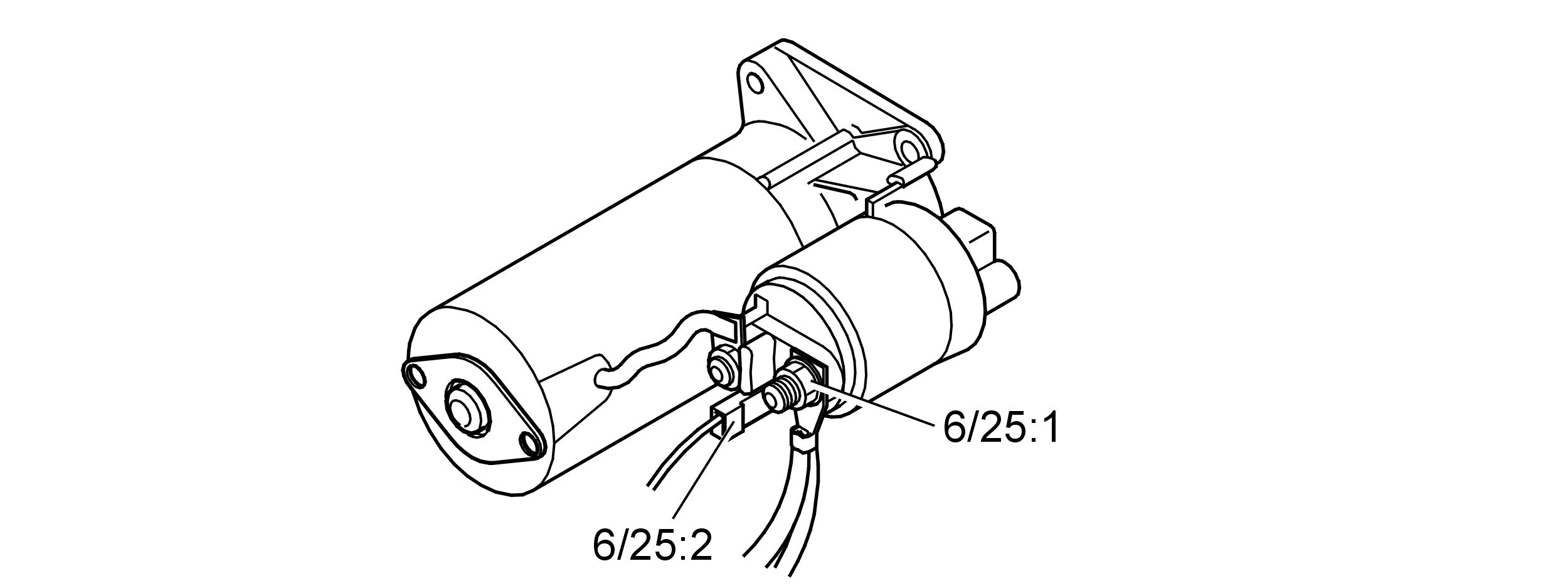

Fig 2: Identifying Starter Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Starter motor terminals:

• 6/25:1 From the battery positive terminal
• 6/25:2 From starter motor relay.

Ground terminal via transmission / cylinder block.
